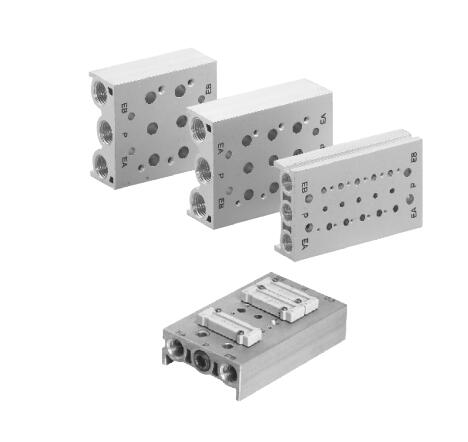

SY Series Solenoid Manifold/Pneumatic Manifold
SS5Y-3-20 Manifold For SY3000 Series Solenoid Valve ; Max 20 Station
SS5Y-5-20 Manifold For SY5000 Series Solenoid Valve ; Max 20 Station
SS5Y-7-20 Manifold For SY7000 Series Solenoid Valve ; Max 20 Station
2-Max 20 Stations ;Port for SY3000 :1/8" ; Port for SY5000/7000 :1/4"
SY3000-SY9000 Series Air Solenoid Manifold.pdf

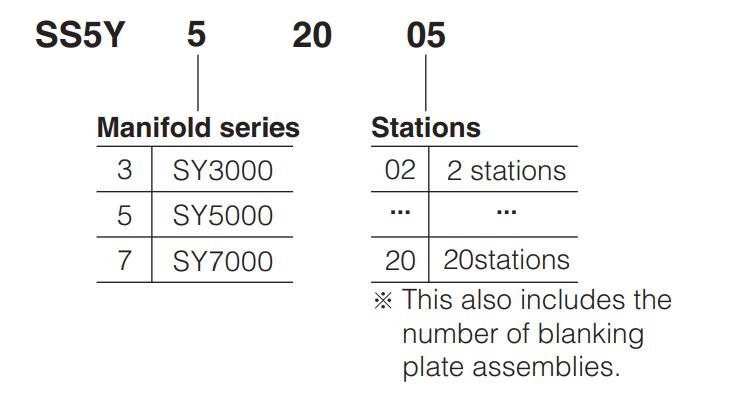

The Solenoid Manifold Ordering Code :
SY Solenoid Manifild Specification:
Model | SS5Y3-20 | SS5Y5-20 | SS5Y7-20 | |
Applicable valve | SY3□20 | SY5□20 | SY7□20 | |
Manifold type | Single base/B mount | |||
P (SUP)/R (EXH) | Common SUP, Common EXH | |||
Valve stations | 2 to 20 stations (Note) | |||
A, B port location | Valve | |||
Port size | P, EA, EBport | 1/8 | 1/4 | 1/4 |
A, B port | M5×0.8 C4(One-touch fitting for Φ 4) C6(One-touch fitting for Φ6) | 1/8 C4(One-touch fitting for Φ4) C6(One-touch fitting for Φ6) C8(One-touch fitting for Φ8) | 1/4 C8(One-touch fitting for Φ8) C10(One-touch fitting for Φ10) | |
Note: For more than 10 stations (more than 5 stations in case of SS5Y7), supply pressure to P port on both sides and exhaust from EA/EB port on both sides.
Solenoid Manifold Flow Rate Characteristics
Model | Port size | Flow rate characteristics | ||||||
1,5,3 (P,EA,EB) | 4,2 (A,B) | 1→4/2(P→A/B) | 4/2→5/3(A/B→EA/EB) | |||||
C{dm3/(s·bar)} | b | Cv | C{dm3/(s·bar)} | b | Cv | |||
SS5Y3-20 | 1/8 | C6 | 0.72 | 0.29 | 0.18 | 0.80 | 0.36 | 0.21 |
SS5Y5-20 | 1/4 | C8 | 1.9 | 0.28 | 0.48 | 2.2 | 0.20 | 0.53 |
SS5Y7-20 | 1/4 | C10 | 3.6 | 0.31 | 0.93 | 3.6 | 0.27 | 0.88 |
What's the Solenoid manifold ?
It is a Aluminium metal plate , with certain holes drilled . It was designed to combine pcs of air valve to work together to save space ,connectors , air hose . And easy to be installed on the machine .
Why we chose the Manifold for the Solenoid air valve ?
1. It is available to integrate the direction control valves of the same series to form valve group to save space and cost;
2. It is easy to examine when there are faults owning to the unified air intake and exhaust and unified wiring;
3. Flexible combination and strong expansion capability can make any combination or expansion of the numbers of direction control valves
that are connected.
4.SMC standard .
What's is the blank plate assembly ?
It is a blank metal palte with a rubber plate seal .
There must in some situation that we only need to combine four pcs Air Valve , but we only keep a five station manifold in our hand . So we must block the rest one station . That's the blank plate usage .
