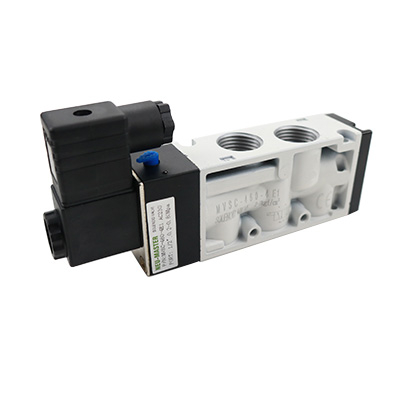

MVSC460 Series Pneumatic Solenoid Valve 3/4Ways 12VDC/24VDC/220VAC/110VAC
Why Chose the Mindman standard Pneumatic Solenoid Valve ?
1. Pilot-oriented mode: Internal pilot or external pilot. Equivalent with MindMan MVSC-460 Series Solenoid Valve
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Three position solenoid valves have three kinds of central functionfor your choice.
4. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5. No need to add oil for lubrication to the electric Solenoid Valve.
6. Affiliated manual devices are equipped to facilitate installation and debugging.
7. Several standard voltage grades are optional .
8. Bigger flow rate than other standard air solenoid valve if with the same pipe size.
MVSD Series Pneumatic Solenoid Valve Catalog.pdf
MVSC-460 Pneumatic Solenoid Valve Symbol:
Electric Actuator Valve 3 ways : The valve piston will move between two poles .
Electric Actuator Valve 4 ways: 4E2-The valve piston will move between two poles .
4E2/4E2P/4E2R - The valve piston will move in three position.

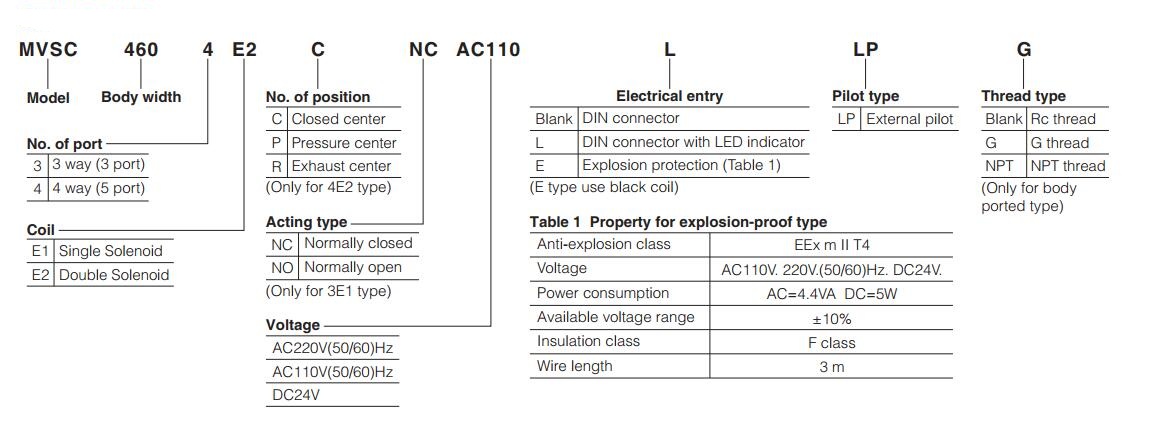

MVSC-460 Pneumatic Solenoid Valve Order Code:
The MVSC460 Pneumatic Solenoid Valve Specification:
Pneumatic Solenoid Valve Model | 3E1 | 3E2 | 4E1 | 4E2 | 4E2C.P.R |
Bore No. | 15A | ||||
Port size | G1/2 | ||||
No. of port | 3 | 5 | |||
No. of position | 2 | 3 | |||
Medium | Air | ||||
Operating perssure range | 0.2~0.8MPa | 0.3~0.8MPa | |||
Operating pressue (LP) | 0~0.8MPa | ||||
External pilot pressure (LP) | 0.2~0.8MPa | 0.3~0.8MPa | |||
Proof pressure | 1MPa | ||||
Effective orifice | 60mm2 | 50mm2 | 30mm2 | ||
Ambient temperature | -5~+50℃ (No freezing) | ||||
Reponse time | 50ms | ||||
Voltage | AC110V, 220V(50/60)Hz, DC24V | ||||
Power consumption | AC=4.8/4.4VA, 6/4.9VA DC2W | ||||
Available voltage range | ±10% | ||||
Insulation class | F Class | ||||
Weight | 353g | 437g | 330g | 452g | 634g |
The NPT thread port , PT thread port,G thread port .
Where the Pneumatic Solenoid Valve were used ? (Appliliance)
Normally it were used to control the air cylinder(Pneumatic cylinder) .
3E1/3E2 Type For controlling the single acting cylinder.
Normally we don't use the 3E1 to control the double acting cylinder . As two sets solenoid valve to be needed . That will increase the cost , and waste the space .
4E1,4E2,4E2C/P/R are perfectly for controling the doubule acting air cylinder .
Usage:
1. Before installing, be sure the Directional Control Valve hasn't been damaged via transportation.
2. It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P: is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Pneumatic Solenoid Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air Solenoid valve, Pneumatic Solenoid Valve, Directional Control Valve, Pneumatic Control Valve, Pneumatic Solenoid are all for control the air direction for the air tools , air cylinders.
