K35-D/Q-H Series Heavy Duty Pneumatic Double Solenoid Valve DC12V 24V AC100V 220V 5/3way)
Voltage:AC220V;AC110V;AC24V;DC24V;DC12V;
Thread Diameter : 1/4";1/8; 3/8",1/2" 3/4",1"Operating Pressure : 0.2-1.8MPa
Material : Metal, Plastic;Color : As Picture Shown
Solenoid Air Valve Type: 5port 3 position
Electric Solenoid Valve 5/3 ways The valve piston will move between three position
K35-D-Q-H Series Heavy Duty Double Solenoid Valve.pdf

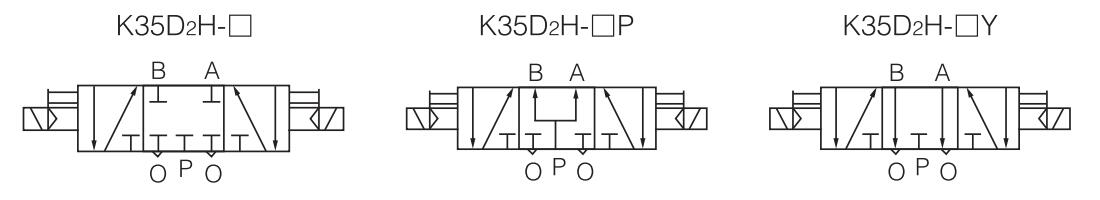

K35-D/Q-H Double Solenoid Valve Symbol:

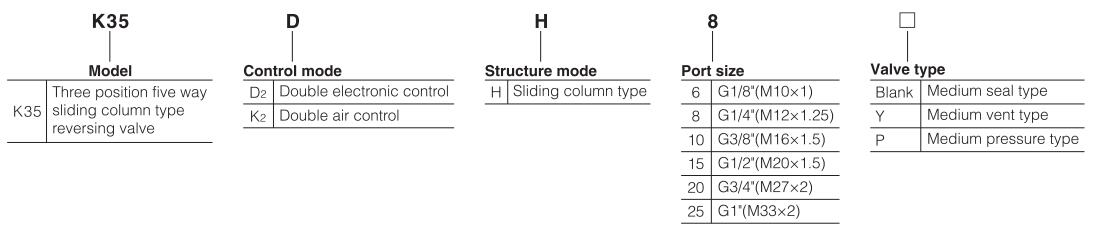

K35-D/Q-H Double Solenoid Valve Ordering Code:
K35-D/Q-H Double Solenoid Valve Specification:
Model Doubel Solenoid Valve Huge Flow Rate | K35D/Q2H-6 K35D/Q2H-6Y K35D/Q2H-6P | K35D/Q2H-8 K35D/Q2H-8Y K35D/Q2H-8P | K35D/Q2H-10 K35D/Q2H-10Y K35D/Q2H-10P | K35D/Q2H-15 K35D/Q2H-15Y K35D/Q2H-15P | K35D/Q2H-20 K35D/Q2H-20Y K35D/Q2H-20P | K35D/Q2H-25 K35D/Q2H-25Y K35D/Q2H-25P |
| Normal Diameter(mm) | 6 | 8 | 10 | 15 | 20 | 25 |
| Work Pressure | 0.15-0.8Mpa | |||||
| Commutation Time | ≤0.06 | ≤0.08 | ≤0.12 | |||
| Commutation Frequency(Hz) | ≥8 | ≥6 | ≥4 | |||
| Ambient Temperature | -5～55°C | |||||
| Medium Temperature | 0～55°C | |||||
| Solenoid Voltage | Voltage:AC220V;AC110V;AC24V;DC24V;DC12V; | |||||
| Service Life | 〉1500000 Circles | |||||
Where the Heavy Duty High Flow Rate K35-D/Q-H Double Solenoid Valve were used ?
Normally it were used to control the air cylinder(Pneumatic cylinder) .
Usage:
1. Before installing, be sure the Directional Control Valve hasn't been damaged via transportation.
2. It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P: is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the K35-D/Q-H Double Solenoid Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Double Solenoid valve, Pneumatic Solenoid valve, Pneumatic solenoid, Air Solenoid, Pneumatic Valve,Compressed Air Solenoid Valve,Air Solenoid Valve 12V,Pneumatic Air Valve,Air Solenoid Valve 24V are all for control the air direction for the air tools , air cylinders.
