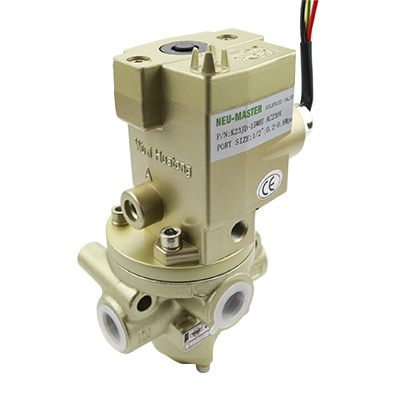

K23J-D-W Series Heavy Duty Pneumatic Solenoid Valve/Air Solenoid Valve(5/3way)
Voltage:AC220V;AC110V;AC24V;DC24V;DC12V;
Thread Diameter : 1/4";1/8; 3/8",1/2" 3/4",1",1-1/4",1-1/2" Operating Pressure : 0.2-0.8MPa
Material : Metal, Plastic;Color : As Picture Shown
Solenoid Air Valve Type: 3 port 2 position
K23J-D-WUXI-Series Heavy Duty Air Solenoid Valve.pdf

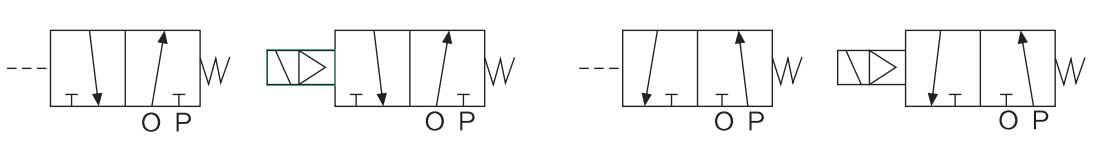

Product Symbol:

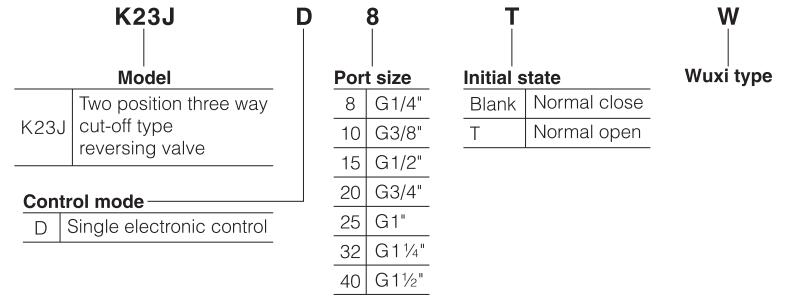

Ordering Code:
Specification:
Model Heavy Duty Solenoid Valve Huge Flow Rate | K23J-8W | K23J-10W | K23J-15W | K23J-20W | K23J-25W | K23J-32W | K23J-40W |
| Normal Diameter(mm) | 8 | 10 | 15 | 20 | 25 | 32 | 40 |
| Work Pressure | 0.2-0.8Mpa | ||||||
| Commutation Time | ≤0.04 | ≤0.06 | ≤0.1 | ≤0.15 | |||
| Commutation Frequency(Hz) | ≥10 | ≥8 | ≥4 | ≥3 | |||
| Ambient Temperature | -5～55°C | ||||||
| Medium Temperature | 0～55°C | ||||||
| Solenoid Voltage | Voltage:AC220V;AC110V;AC24V;DC24V;DC12V; | ||||||
| Service Life | 〉1500000 Circles | ||||||
Where the Heavy Duty High Flow Rate Pneumatic Solenoid Valve were used ?
Normally it were used to control the air cylinder(Pneumatic cylinder) .
Usage:
1. Before installing, be sure the Directional Control Valve hasn't been damaged via transportation.
2. It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P: is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Electric Solenoid Air Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Heavy Duty Solenoid Valve, high flow solenoid valve, Pneumatic solenoid valve, Air Pilot Valve, Pneumatic Valve are all for control the air direction for the air tools , air cylinders.
