3V100-300/ 4V100-400 Series Pneumatic Solenoid Valve Manifold
Solenoid Valve Manifolds & Mounting Hardware
3V100-300/4V100-400 series manifolds simplify mounting and plumbing of multiple valves, and allow field assembly of up to 20-valve banks of 3V and 4V series air socomponents. Manifolds are supplied with rubber gaskets and mounting screws; blanking plates are required for vacant slots. Stacking screw kits and mounting brackets are also available for 3V/4V series valves.
3V Solenoid Valve Manifold Specification
Item\Manifold Model | 3V100M | 3V200M | 3V300M |
Fluid | Air(to be filtered by 40 μm filter element) | ||
Temperature ℃ | -20~70 | ||
Adaptable valve’s series | 3V100 Series | 3V200 Series | 3V300 Series |
3V Solenoid Valve Manifold Ordering Code:
4V Solenoid Valve Manifold Specification
Item\Manifold Model | 100M | 200M | 300M | 400M |
Fluid | Air(to be filtered by 40 μm filter element) | |||
Temperature ℃ | -20~70 | |||
Adaptable valve’s series | 4V100 Series | 4V200 Series | 4V300 Series | 4V400 Series |

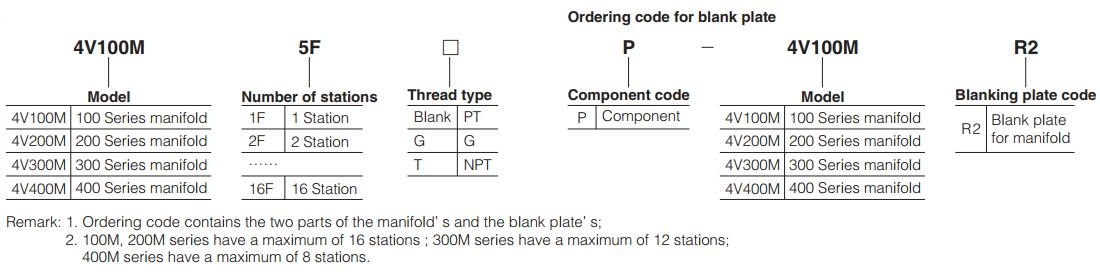

4V Solenoid Valve Manifold Ordering Code:
What's the solenoid valve manifold ?

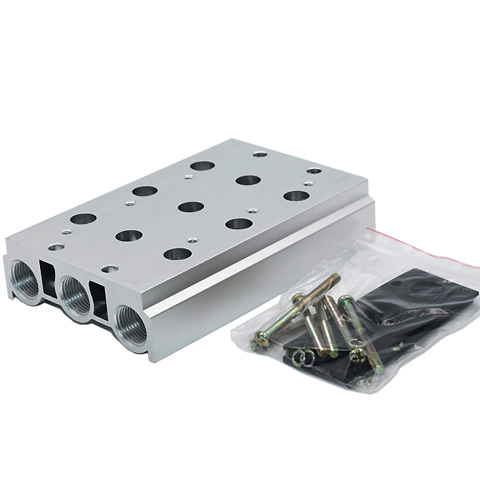

It is a Aluminium metal plate , with certain holes drilled . It was designed to combine pcs of air valve to work together to save space ,connectors , air hose . And easy to be installed on the machine .
Why we chose the Manifold for the Solenoid air valve ?
1. It is available to integrate the direction control valves of the same series to form valve group to save space and cost;
2. It is easy to examine when there are faults owning to the unified air intake and exhaust and unified wiring;
3. Flexible combination and strong expansion capability can make any combination or expansion of the numbers of direction control valves
that are connected.
4.SMC standard .
What's is the blank plate assembly ?
It is a blank metal palte with a rubber plate seal .
There must in some situation that we only need to combine four pcs Air Valve , but we only keep a five station manifold in our hand . So we must block the rest one station . That's the blank plate usage .
1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the solenoid valve fold , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
