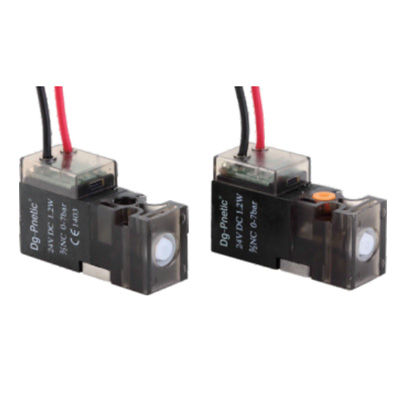

HB10 Series Miniature Solenoid Valve DC12V 24V 0-0.7MPa Valve Orifice 1mm Or 0.7mm
Standard Voltage:DC24V;DC12V;
Operating Pressure : 0.-0.7MPa Valve Orifice :1mm or 0.7mm
Service Life:150 million times ; Protective Structure : Dust Proof
Response time:6-8ms Instruction Light: LED
 HB10 Miniature Air Solenoid Valve.pdf |
HB10 Series Miniature Solenoid Valve Product Symbol:

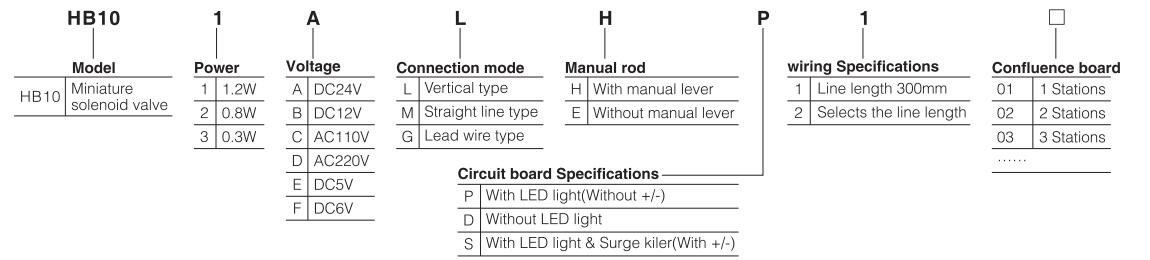

Miniature Solenoid Valve Ordering Code:
Miniature Solenoid Valve Specification-Parameter
| Model Micro Solenoid Valve | HB10 |
| Type | 3/2 Normal Close |
| Medium | Air or Inertgas |
| Working Pressure | 0-0.7Mpa |
| Enviroment And Medium Temperature | -10°C～75°C Non Freezing |
| Valve Orifice Size | 0.7mm(1.0mm) |
| P→A | CV:0.008 |
| b:0.11 | |
| A→R | CV:0.015 |
| b:0.35 | |
| Lubricant Oil | No Need |
Miniature Solenoid Valve Coil Specification
| Wire Leads | Vertical Type(L Type) Straight Line Type (M Type) Lead Wire Type(G Type) |
| Standard Voltage | DC24/12V |
| Allowed Voltage Fluctuation | ±15% |
| Power | 1.2W/0.3W |
| Insulation Class | H |
| Service Life | ≥150 Million Times |
| Instruction Light | LED |
| Operating Frequency | ≥30HZ |
| Response Time | 6-8ms |
| Protective Structure | Dust-Proof |
Where the HB10 Series Miniature Solenoid Valve were used ?
Normally it were used to control the micro vacuum pad .
Usage:
1. Before installing, be sure the Directional Control Valve hasn't been damaged via transportation.
2. It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P: is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the HB10 Series Miniature Solenoid Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: micro solenoid valve, miniature solenoid valve, Mini solenoid valve, small solenoid valve, Small solenoid are all for control the air direction for the air tools , air cylinders.
