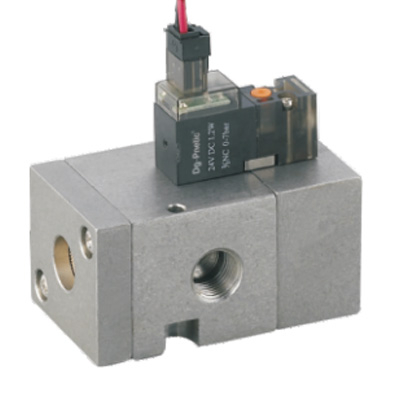

HY Series Stainless Steel Air Solenoid Valve 5port 2 position /3port-2Position DC12V 24V AC220V 110V Model:HY-S1-02 3/2 way;HY-S2-02 NAMUR 5/2 way Model:HY-S3-02 5/2 way;HY-S4-02 5/2 Air control valve Voltage;DC24V;DC12V; Thread Diameter : 1/4",1/8"; Operating Pressure : 0.15-0.8MPa Material : Stainless steel ;Color : As Picture Shown Solenoid Air Valve 5port 2 position /3port-2Position |

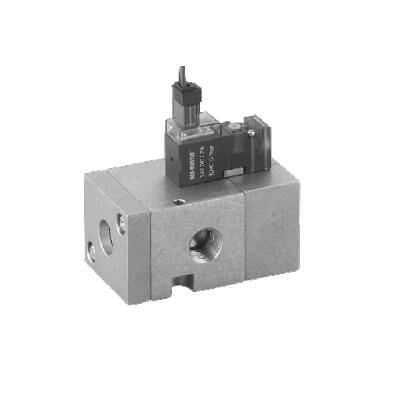

Stainless Steel Air Solenoid Valve Specification
| Model | HY-S1-02 |
| Structure Type | 3/2way | |
| Port Size | 1/8" G;NPT | |
| Medium | Compressed air | |
| Acting Type | internal pilot | |
| Working Voltage | DC12V;DC24V | |
| Connection model | Terminal or Grommet | |
| Frequency | 5 cycles/s | |
| Response Time | 0.05 Second |

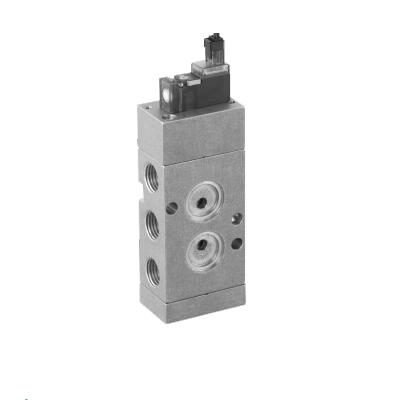

HY-S2-02 Stainless Steel Air Solenoid Valve ; 5/2 way Stainless Steel NAMUR Air solenoid valve
| Model | HY-S2-02 |
| Structure Type | 5/2way | |
| Port Size | 1/8" G;NPT | |
| Medium | Compressed air | |
| Acting Type | internal pilot | |
| Working Voltage | DC12V;DC24V | |
| Connection model | Terminal or Grommet | |
| Frequency | 5 cycles/s | |
| Response Time | 0.05 Second |

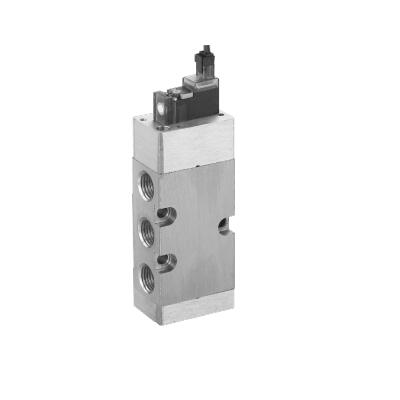

HY-S3-02Stainless Steel Air Solenoid Valve ; 5/2 way Stainless Steel Air Solenoid Valve
| Model | HY-S3-02 |
| Structure Type | 5/2way | |
| Port Size | 1/4" G;NPT | |
| Medium | Compressed air | |
| Acting Type | internal pilot | |
| Working Voltage | DC12V;DC24V | |
| Connection model | Terminal or Grommet | |
| Frequency | 5 cycles/s | |
| Response Time | 0.05 Second |

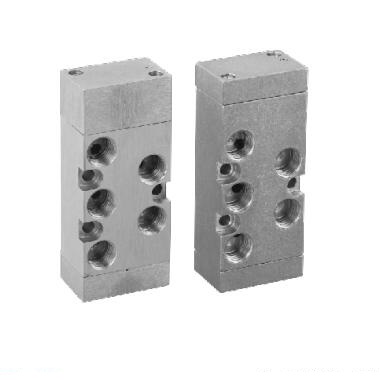

HY-S4-02 Stainless steel air valve ; 5 /2 way Air Pilot control valve
| Model | HY-S4-02 |
| Structure Type | 5/2way | |
| Port Size | 1/8" G;NPT | |
| Medium | Compressed air 0.25-1.0Mpa |
Where the Stainless Steel Air Solenoid Valve were used ?
Normally it were used to control the air cylinder in thecorrosive enviroment , or in the food industry and the pharmaceutical industry (Pneumatic cylinder) .
Usage:
1. Before installing, be sure the Directional Control Valve hasn't been damaged via transportation.
2. It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P: is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Stainless Steel Air Solenoid Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Stainless steel Air solenoid Valve, stainless steel Solenoid valve, Air Solenoid, Air Solenoid Valve 24V, Air Actuated Solenoid Valve are all for control the air direction for the air tools , air cylinders.
