PV800 Series Pneumatic Angle Seat Valve/Piston Valve (Y-Type Compact Valve)
NEU-MASTER
PV800 Angle Seat Valve
Availability: | |
---|---|
PV800 Series Pneumatic Angle Seat Valve/Piston Valve (Y-Type Compact Valve) •2/2-way angle type valve for medium up to +180°C, •Thread Port connection DN 15-65 •Actuator:Stainless steel material or Aluminium for choosing •Valve body material: SS304/316/316L for choosing •NC and NO universal actuators with modular universal accessory program up to control heads PDF Catalog:

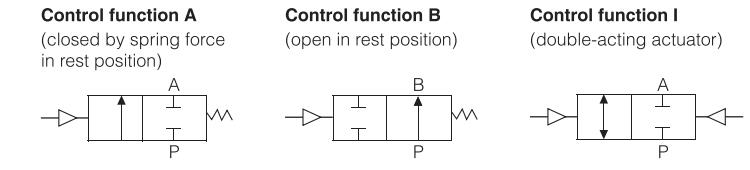

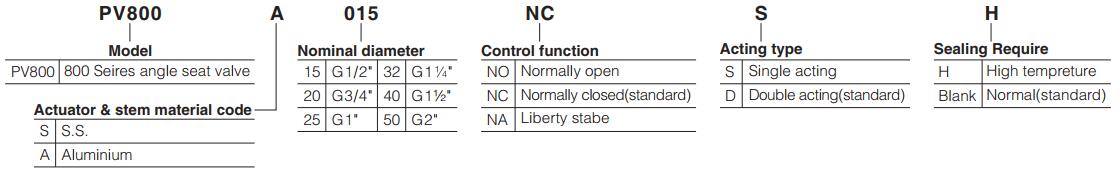

Product Symbol: Angle Seat valve: Angle Seat valve ordering code: |
1.Classic design, Long life cycle;
2.NC and NO is optional;
3.Structure in coaxial stop, leakage proof and high flow rate;
4.Saving energy.
●Construction
Seal material: PTFE(NBR, FKM and EPDM on request)
Liquid and gaseous media that do not attack the housing and seal materials
●Media
Control medium: Air
●Temperature range
Medium temperature: -10 to 80℃ with NBR seal; -10 to 150℃ (PTFE, FKM) Ambient temperature: -10 to 60℃
Standard Version: Aluminium actuator, S.S actuator on require
●Applications
Food, packaging, petrochemical, metallurgican, spraying, vehicles, printing and dyeing machinery etc.
Model Specification | Normally Closed | P015NC | P020NC | P025NC | P032NC | P040NC | P050NC |
Normally Open | P015NO | P020NO | P025NO | P032NO | P040NO | P050NO | |
Material of body | S.S304/316/316L for body, Aluminium for stem and actuator, S.S is optional. | ||||||
Operating method | Plunger pilot | ||||||
Ambient and fluid | Air, Water, Oil, Liquefied gas, Free-running viscosity liquid | ||||||
Port size | G1/2" | G3/4" | G1" | G1 " | G1½" | G2" | |
Nominal diameter (mm) | 13 | 16 | 22 | 32 | 35 | 45 | |
Kv (m3/h) | 4 | 5 | 10 | 20 | 33 | 42 | |
Pressure range (Mpa) | 0~0.8 | 0~0.8 | 0~0.8 | 0~0.8 | 0~0.8 | 0~0.8 | |
Min. control pressure (Mpa) | 0.30 | 0.30 | 0.32 | 0.30 | 0.35 | 0.32 | |
Meduim temp. | NBR for -10~80℃ and EPDM, VITON for -10~150℃ |
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the PV800 Angle Seat Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Angle Seat Valve, pneumatic angle seat valve, angle seat valve manufatures, Angle Seat Drain Valve, pneumatic angle valve, Air actuated valve, Air actuated angle seat valve, angle seat, angle type valve, angle type control valve are for the liquid flow control.
