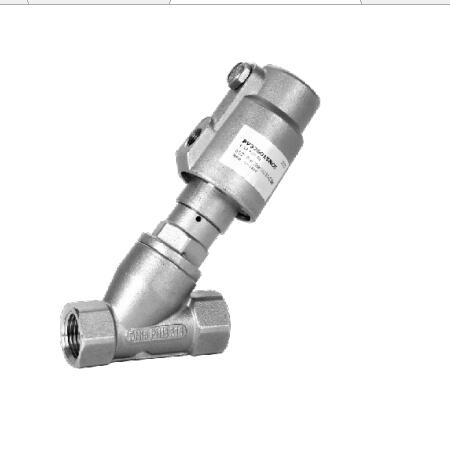

PV32S Series Angle Seat Valve (Piston Valve/ Filling Valve) • 2/2Ways Pilot Control Angle Seat Valve; Cast Valve Body; • 2/2-wa valve for medium up to +180°C, • Thread Port connection DN 10-20 • Actuator:Stainless steel actuator; • NC and NO universal actuators with modular universal accessory program up to control heads • Deliverable with flow direction below or above seat PDF Catalog: Product Symbol:Angle type control valve
|
Ordering Code:
PV32S010: 3/8"
PV32S015: 1/2"
PV32S020: 3/4"
Product Detailes:
Medium temperature range:-10℃∽180℃
Pilot fliud temperature range:-10℃∽60℃
Working pressure:3bar
Maximun pilot pressure:0.6 Mpa
Pilot fluid: Filtered air
Valve body material:SS304/316/316L
Stuffing box housing material: SS304/316/316L
Stem/Disc material: SS304
Stuffing box packing:PTFE chevrons
Wiper seal:FPM
Disc seal: PTFE
Product Features:
1.2/2-way Angle-seat valve(Filling valve) Pneumatically Operated , for medium up to +180℃
Stainless stell actuator dia 32mm Thread port DN10-20
2.Compact style 2/2-way stainless steel valve
3.Movable seat & V type seals ensure reliable and effective performance
4.Single acting NC,single acting NO and double acting optional.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Angle Seat Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Angle Seat Valve, pneumatic angle seat valve, angle seat valve manufatures, Angle Seat Drain Valve, pneumatic angle valve, Air actuated valve, Air actuated angle seat valve, angle seat, angle type valve, angle type control valve are for the liquid flow control.
