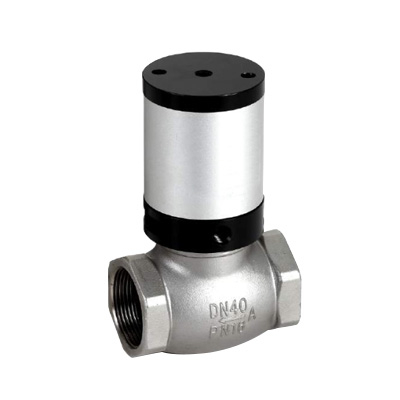

GV500A Series Globe Valve,Pneumatically Operated (Big Actuator) •2/2Ways Pneumatically Controlled Globe Valve; Cast Valve Body; •GV500A Series Pneumatically Operated Globe Valve •2/2-ways valve for medium up to +150°C, •Thread Port connection DN 15-65 •Actuator:Aluminium actuator • NC and NO or double acting are optional • Simple conversion of the control function PDF Catalog：
Product Symbol:Pneumatically Controlled Globe Valve
|
Product Detailes:
Ambient temperature range:-10℃∽60℃
Pilot fliud temperature range:-10℃∽60℃
Maximum allowable pressure 1.6Mpa
Maximum viscosity:600 cst (Stere/s)
Ambient and fluid: Air,water,oil and light viscosity fluid
Maximun pilot pressure:1.0 Mpa
Pilot fluid:Filtered air
Valve body material:SS304/316/316L
Stuffing box housing material: Aluminium
Actuator material: Aluminium
Stem/Disc material: SS304
Wiper seal: FPM
Disc seal: PTFE
Globe Valve Port Size | Standard Actuator Size(mm) | Big Actuator Size |
| DN15 | 25 | 32 |
| DN20 | 25 | 32 |
| DN25 | 32 | 40 |
| DN32 | 40 | 50 |
| DN40 | 50 | 63 |
| DN50 | 63 | 80 |
| DN65 | 80 | 100 |
Product Features:
1.2/2-way Globe control valve;pneumatically operated,for medium up to 150℃. Threaded port connection DN15-65
2.Classical design,long life cycle .
3.NC,NO or double acting are optional
4.Structure in coaxial stop,leakage proof and high flow rate,saving energy
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Angle Seat Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Angle Seat Valve, pneumatic angle seat valve, angle seat valve manufatures, Angle Seat Drain Valve, pneumatic angle valve, Air actuated valve, Air actuated angle seat valve, angle seat, angle type valve, angle type control valve are for the liquid flow control.
