P4300 Series Angle Seat Valve (Weld ends )
NEU-MASTER
PV400 Angle Seat Valve
Availability: | |
---|---|

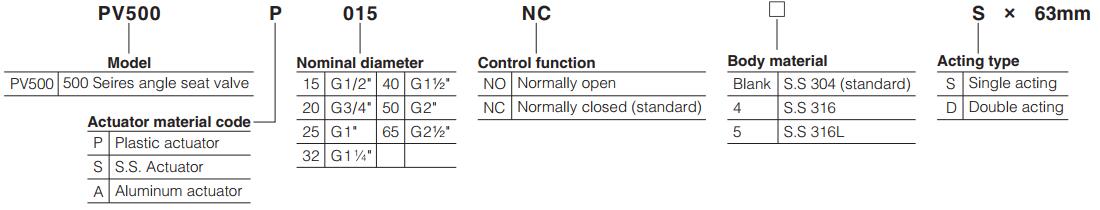

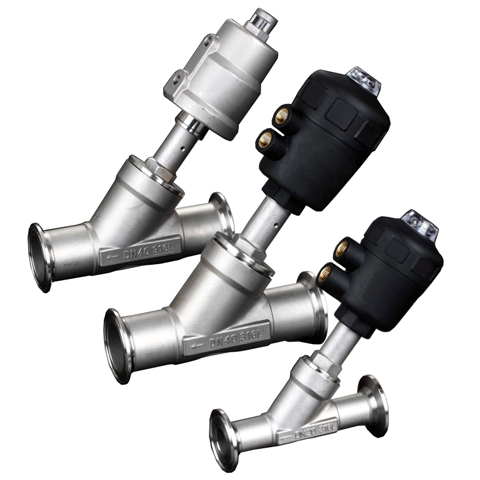

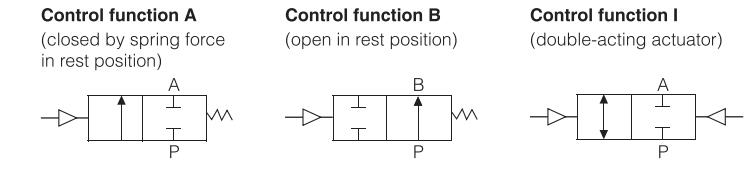

PV500 Series Angle type Valve (With Tri-Clampe Ends) •2/2-way angle type valve for medium up to +180°C, •Thread Port connection DN 15-65 •Actuator:SS304/316/316L/PA material for choosing •Valve body material: SS304/316/316L for choosing •NC and NO universal actuators with modular universal accessory program up to control heads •Male Threaded+socket Welded PDF Catalog: PV500 Pneumatically Operated Angle Seat Drain Valve.pdf Product Symbol: Angle type valve: Angle type valve ordering code: ●Clamp specification: ISO 2852-1993 ISO/JIS is also available ●PV500 Series plunger pilot angle seat valve is propelled by a piston actuator, either single acting or double acting. ●Actuators are made of three different materials, applicable to different working temperature: ●2/2 Way stainless steel valve with big flow capacity V type seals ensure reliable and effective sealing. ●Maintenence free, compatible with various accessories, Direction indicating, stroke limiting or manual switching can be achieved conveniently. |
Product Detailes:
Model Specification | Normally Closed | P015NC | P020NC | P025NC | P032NC | P040NC | P050NC | P065NC |
Normally Open | P015NO | P020NO | P025NO | P032NO | P040NO | P050NO | P065NO | |
Material of body/ Actuator | S.S304 316 /PA | |||||||
Operating method | Plunger pilot | |||||||
Ambient and fluid | Air, Water, Oil, Steam (50CTS Bellow) | |||||||
Port size | G1/2" | G3/4" | G1" | G1 " | G1½" | G2" | G2½" | |
Nominal diameter (mm) | 13 | 18 | 24 | 31 | 35 | 45 | 61 | |
Kv (m3/h) | 4.2 | 9 | 19 | 33 | 42 | 59 | 90 | |
Model Specification | Normally Closed | S015NC | S020NC | S025NC | S032NC | S040NC | S050NC | S065NC |
Normally Open | S015NO | S020NO | S025NO | S032NO | S040NO | S050NO | S065NO | |
Material of body/ Actuator | S.S304 316 /PA | |||||||
Angle Seat seal | PTFE/FPM | |||||||
Stem seal | PTFE/FPM | |||||||
Piston seal | PTFE/FPM/NBR | |||||||
Tempreture of medium | PTFE | -10~200℃ | ||||||
FPM | -10~150℃ | |||||||
Installing | Downsteam/Upsteam |
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the PV500 Angle Seat Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Angle Seat Valve, pneumatic angle seat valve, angle seat valve manufatures, Angle Seat Drain Valve, pneumatic angle valve, Air actuated valve, Air actuated angle seat valve, angle seat, angle type valve, angle type control valve are for the liquid flow control.
