P700 Series Angle Seat Valve(Polished Stainless Steel Actuator)
NEU-MASTER
PV700 Angle Seat Valve
Availability: | |
---|---|

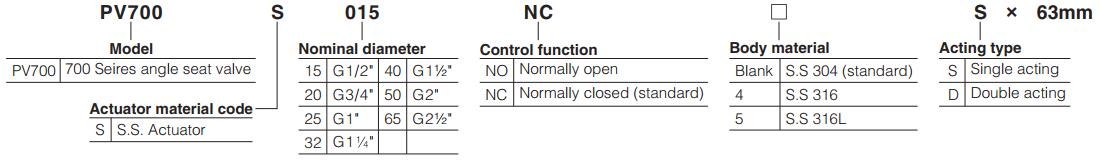

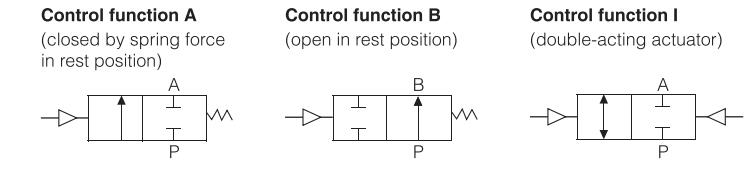

PV700 Series Pneumatic Angle type Valve(Polished Stainless Steel Actuator) •2/2-way angle type valve for medium up to +180°C, •Thread Port connection DN 15-65 •Actuator:SS304/316/316L material for choosing •Valve body material: SS304/316/316L for choosing •NC and NO universal actuators with modular universal accessory program up to control heads PDF Catalog: PV700 Pneumatically Operated Angle Seat Drain Valve.pdf Product Symbol: Angle type valve: Angle type valve ordering code: ●PV700 Series plunger pilot angle seat valve is propelled by a piston actuator, either single acting or double acting. ●The actuator is one punch formed with stainless steel plate, surface polished, thus more appealing, applicable to different working temperature: ●2/2 Way stainless steel valve with big flow capacity V type seals ensure reliable and effective sealing. ●Maintenence free, compatible with various accessories, Direction indicating, stroke limiting or manual switching can be achieved conveniently. |
Actuator Detailes:
Port size | Standard actuator size (mm) |
S.S. | |
DN10 | 40,50 |
DN15 | 40,50 |
DN20 | 50,63,80 |
DN25 | 50,63,90 |
DN32 | 63,80 |
DN40 | 63,80 |
DN50 | 63,80 |
DN65 | 90,100 |
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the PV700 Angle Seat Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Angle Seat Valve, pneumatic angle seat valve, angle seat valve manufatures, Angle Seat Drain Valve, pneumatic angle valve, Air actuated valve, Air actuated angle seat valve, angle seat, angle type valve, angle type control valve are for the liquid flow control.
