NAMUR Actuator For Angle Seat Valve Product feature
●2/2-way Angle-Seat Valve for medium up to +180℃, NAMUR type Actuator ●connection is available on customer request DN 15-65 ●NAMUR direct connections on piloting head, direct coupling with solenoid valve ●NC and NO universal actuators with modular universal accessary program up to control heads NAMUR type actuator 1.Namur interface allows easy installation of pilot valve to actuator 2.Increased operational reliablity when using the NAMUR piolt valves type 4M310-08/10 |
Port size | Standard actuator size (mm) | |
PA | ||
DN15 | 50 | Available |
DN20 | 50,63,80 | Available |
DN25 | 50,63,80 | Available |
DN32 | 63,80 | |
DN40 | 63,80 | |
DN50 | 63,80 | |
DN65 | 80,100 | |

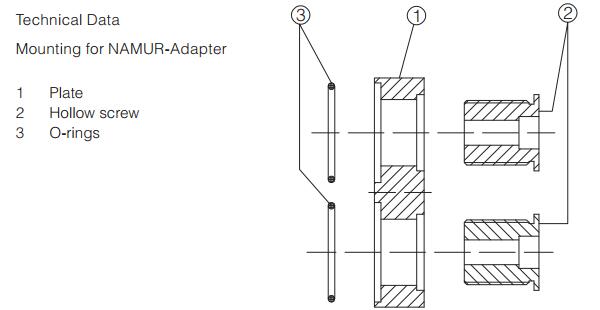

NAMUR Adapter For Pilot Angle Seat Valve
Advantages / Benefits 1.Namur interface allows easy installation of pilot valve to actuator 2.Increased operational reliability when using the NAMUR pilot valves types 5/2 way 4M210-08/4M310-08 The Adapter
•Namur-Adapter for Stroke actuator Φ50 to 80 for angle seat and globe valve Φ63 to 100 for diaphragm valve NAMUR adapter for rotary actuator Φ63 on request Version 2 •Namur-Adapter for Stroke actuator Φ100 and 125 for angle seat and globe valve Φ125 for diaphragm valve NAMUR adapter for rotary actuator Φ100 |
1.Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Angle Seat Valve with namur actuator, delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Angle Seat Valve, pneumatic angle seat valve, angle seat valve manufatures, Angle Seat Drain Valve, pneumatic angle valve, Air actuated valve, Air actuated angle seat valve, angle seat, angle type valve, angle type control valve are for the liquid flow control.
