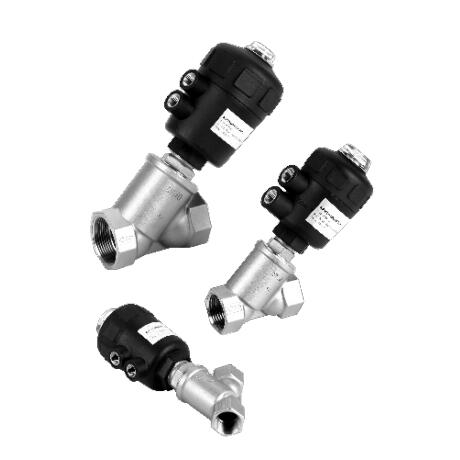

EPV100 Series Short Stem Pneumatically Operated Drain Angle Seat Valve •2/2Ways Pilot Control Angle Seat Valve; Cast Valve Body; •EPV100 Series Pneumatically Operated Short Stem Angle type Valve •2/2-wa valve for medium up to +120°C, •Thread Port connection DN 15-50 •Actuator:PA actuator;S.S actuator;Aluminium actuator • NC and NO universal actuators with modular universal accessory program up to control heads • Deliverable with flow direction below or above seat • Simple conversion of the control function PDF Catalog:

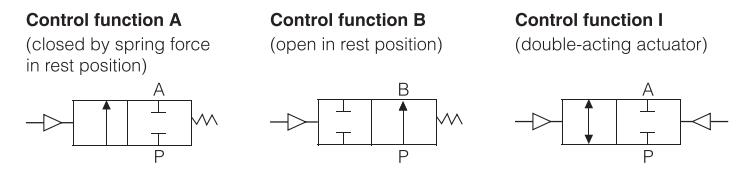

Product Symbol:Angle type control valve
|

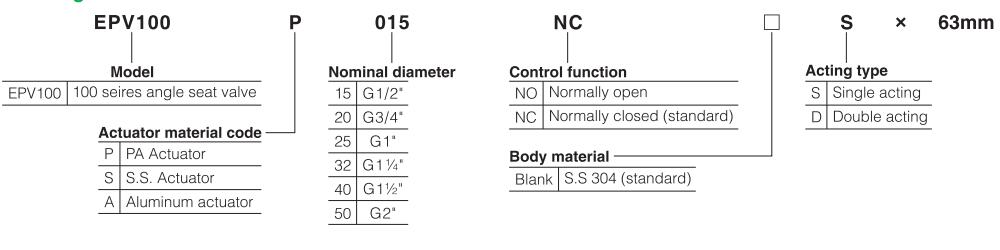

Product Ordering Code:
Product Detailes:
Model Angle Seat Mini Short Stem | Normal Close | DN15NC | DN20NC | DN25NC | DN32NC | DN40NC | DN50NC |
| Normal Open | DN15NO | DN20NO | DN25NO | DN32NO | DN40NO | DN50NO | |
| Control Function | 2 ways Normal Close/Normal Open Pneumatically Operated Angle Seat Valve(Mini Short Stem) | ||||||
| Actuator Material | PA actuator;S.S actuator;Aluminium actuator | ||||||
| Valve Body Material | Stainless Steel 304/316 | ||||||
| Nominal Diameter | 13 | 18 | 24 | 31 | 35 | 45 | |
| Kv (Stere/H) | 4.2 | 9 | 19 | 33 | 42 | 59 | |
| Stem Seal | PTFE/FPM | ||||||
| Seat Seal | PTFE/FPM/NBR | ||||||
| Piston Seal | FPM/NBR | ||||||
| Operating Pattern | Pluger Pilot | ||||||
| Medium | Water,alcohol,oil (50CTS Bellow) | ||||||
| Ambient Temperature | PA Actuator -10～120℃/Aluninum actuator:-10～140℃ | ||||||
| Medium Temperature | -10～120℃ | ||||||
Product Features:
1.EPV100 series plunger pilot angle seat valve is operated by a piston actuator,either single acting or double acting.Mini short stem .
2.Actuators are made of four different materials,applicable to different ambient temperature.
3.The valve is suitable for hte neutral gases or liquids, detergrents and solvents ;2/2-way stainless steel valve with big capacity.Widely used in industries such as food,textile,medicine,industrial washing equioment,chemical industry.etc.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Angle Seat Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Angle Seat Valve, pneumatic angle seat valve, angle seat valve manufatures, Angle Seat Drain Valve, pneumatic angle valve, Air actuated valve, Air actuated angle seat valve, angle seat, angle type valve, angle type control valve are for the liquid flow control.
