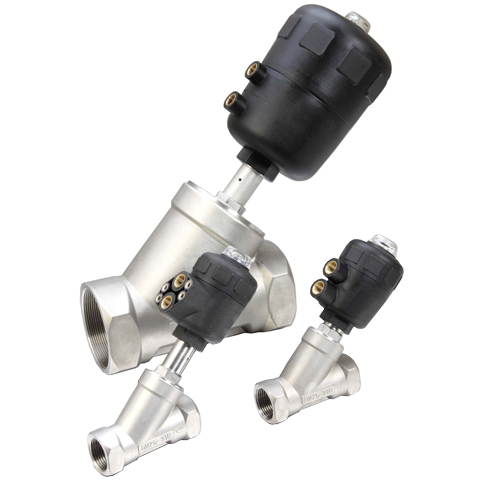

PV100 Series Angle Seat Valve (Piston Angle Valve/ Filling Valve) •2/2-way valve for medium up to +180°C, •Thread Port connection DN 10-80 •Actuator:SS304/316/316L material for choosing •Valve body material: SS304/316/316L for choosing • Simple conversion of the control function • NC and NO universal actuators with modular universal accessory program up to control heads PDF Catalog:
PV100 Series Angle Seat Valve Product Symbol:
|

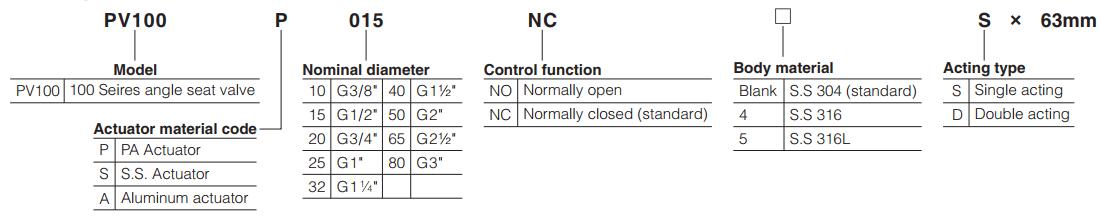

Angle Seat Valve Ordering Code:
●PV100 Series plunger pilot angle seat valve is propelled by piston actuator, either single acting or double acting. ●Actuators are made of three different materials, applicable to different working temperature:
●2/2 Way stainless steel valve with big flow capacity V type seals ensure reliable and effective sealing.
●Maintenence free, compatible with various accessories,
●Direction indicating, stroke limiting or manual switching can be achieved conveniently.
PV100 Series Angle Seat Valve Detailes:
Model Specification | Normally Closed | P010NC | P015NC | P020NC | P025NC | P032NC | P040NC | P050NC | P065NC | P080NC |
Normally Open | P010NO | P015NO | P020NO | P025NO | P032NO | P040NO | P050NO | P065NO | P080NO | |
Material of body/ Actuator | S.S304 316 /PA | |||||||||
Operating method | Plunger pilot | |||||||||
Ambient and fluid | Air, Water, Oil, Steam (50CTS Bellow) | |||||||||
Port size | G3/8" | G1/2" | G3/4" | G1" | G1 " | G1½" | G2" | G2½" | G3" | |
Nominal diameter (mm) | 13 | 13 | 18 | 24 | 31 | 35 | 45 | 61 | 80 | |
Kv (m3/h) | 3.7 | 4.2 | 9 | 19 | 33 | 42 | 59 | 90 | 135 | |
Model Specification | Normally Closed | S010NC | S015NC | S020NC | S025NC | S032NC | S040NC | S050NC | S065NC | S080NC |
Normally Open | S010NO | S015NO | S020NO | S025NO | S032NO | S040NO | S050NO | S065NO | S080NO | |
Material of body/ Actuator | S.S304 316 /PA | |||||||||
Seat seal | PTFE/FPM | |||||||||
Stem seal | PTFE/FPM | |||||||||
Piston seal | PTFE/FPM/NBR | |||||||||
Tempreture of medium | PTFE | -10~200℃ | ||||||||
FPM | -10~150℃ | |||||||||
Installing | Downsteam/Upsteam | |||||||||
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the PV100 Angle Seat Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Angle Seat Valve, pneumatic angle seat valve, angle seat valve manufatures, Angle Seat Drain Valve, pneumatic angle valve, Air actuated valve, Air actuated angle seat valve, angle seat, angle type valve, angle type control valve are for the liquid flow control.
