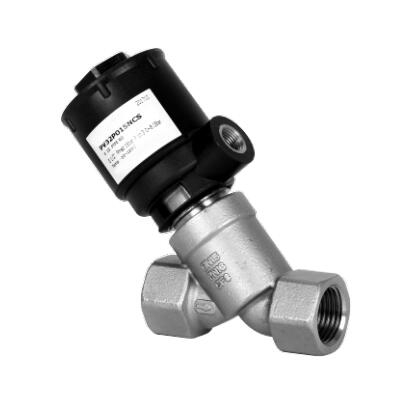

PV32P Series Pneumatically Operated Angle Seat Valve (ASCO Type)
NEU-MASTER
PV32P Angle Seat Valve (ASCO Type)
Availability: | |
---|---|
PV32P Series Pneumatically Operated Angle Seat Valve (ASCO Type) •2/2Ways Pilot Control Angle Seat Valve; Cast Valve Body; •2/2-wa valve for medium up to +120°C, •Thread Port connection DN 10-20 •Actuator:PA actuator; • NC and NO universal actuators with modular universal accessory program up to control heads • Deliverable with flow direction below or above seat PDF Catalog: PV32P Series Pneumatically Operated Angle Seat Valve.pdf Product Symbol:Angle type control valve |
Ordering Code:
PV32P010: 3/8"
PV32P015: 1/2"
PV32P020: 3/4"
Product Detailes:
Ambient temperature range:-10℃∽60℃
Pilot fliud temperature range:-10℃∽60℃
Maximum allowable pressure 1.6Mpa
Maximum viscosity:600 cst (Stere/s)
Maximun pilot pressure:1.0 Mpa
Pilot fluid:Filtered air or water
Valve body material:SS304/316/316L
Stuffing box housing material: SS304/316/316L
Actuator material: Aluminium
Stem/Disc material: SS304
Stuffing box packing:PTFE chevrons
Disc seal: PTFE
Product Features:
High flow due to angle seat design
Anti-water hammer design(Fluid entry under the disc)
Vacuum operation up to 10mbar
Actuator rotatable through 360°
Reliable performance,maintence-free stuffing box
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Angle Seat Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Angle Seat Valve, pneumatic angle seat valve, angle seat valve manufatures, Angle Seat Drain Valve, pneumatic angle valve, Air actuated valve, Air actuated angle seat valve, angle seat, angle type valve, angle type control valve are for the liquid flow control.
