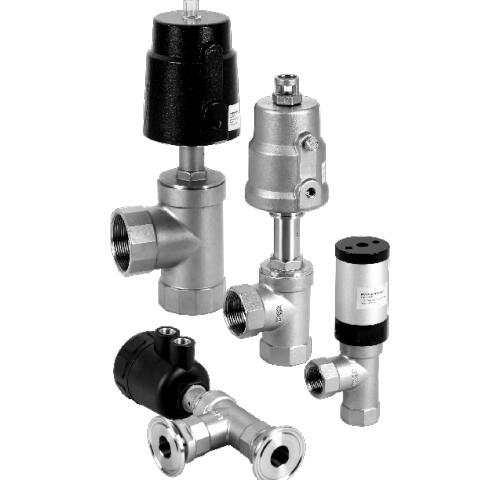

DV100/200 Series Pneumatically Operated Drain Angle Seat Valve •2/2Ways Pilot Control Angle Seat Valve; Cast Valve Body; •DV100/200 Series Pneumatically Operated Drain Angle type Valve •2/2-wa valve for medium up to +180°C, •Thread Port connection, Tri-clamp connection DN 15-50 •Actuator:PA actuator;S.S actuator;Aluminium actuator;Pneumatic cylinder • NC and NO universal actuators with modular universal accessory program up to control heads • Deliverable with flow direction below or above seat • Simple conversion of the control function PDF Catalog:

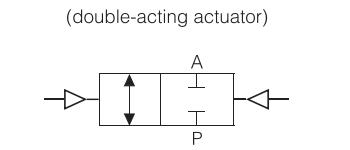

Product Symbol:Angle type control valve
|

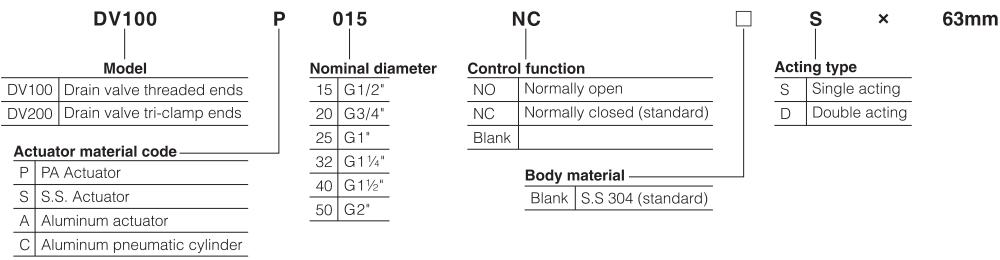

Product Ordering Code:
Product Detailes:
| Model Angle Seat Valve | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
| Control Function | 2 ways Normal Close/Normal Open Pneumatically Operated Drain Valve | |||||
| Actuator Material | PA actuator;S.S actuator;Aluminium actuator;Pneumatic cylinder | |||||
| Valve Body Material | Stainless Steel 304 | |||||
| Nominal Pressure | PN16(Body) | |||||
| Seat Seal | PTFE/FPM/NBR | |||||
| Operating Pattern | Pluger Pilot | |||||
| Medium | Water,alcohol,oils,fuel,hydraulic fluid,alkaline solutions,salt solution,organic solutions,hot water steam | |||||
| Ambient Temperature | PA Actuator -10～120℃/Aluninum actuator:-10～140℃ | |||||
| Viscosity | Max.600m㎡/s | |||||
| Medium Temperature | -10～120℃ | |||||
Product Features:
DV100/DV200 series plunger pilot angle seat drain valve is operated by a piston actuator,either single acting or double acting.
Actuators are made of four different materials,applicable to different ambient temperature;2/2-way stainless steel valve with big capacity maintenence free,manual switching can be achieved conveniently.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Angle Seat Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Angle Seat Valve, pneumatic angle seat valve, angle seat valve manufatures, Angle Seat Drain Valve, pneumatic angle valve, Air actuated valve, Air actuated angle seat valve, angle seat, angle type valve, angle type control valve are for the liquid flow control.
