PV400 Series Angle Seat Valve Piston Angle Seat Valve (Flange Ends )

PV400 Series Angle Seat Valve Piston Angle Seat Valve (Flange Ends )

Name: PV400 Series Angle Seat Valve Piston Angle Seat Valve (Flange Ends )
Brand: NEU-MASTER
Rating: 5.0 (81 reviews)

•P400 Series Angle Seat Valve (Flange Ends)
•2/2-way valve for medium up to +180°C,
•Thread Port connection DN 15-100
•Actuator:SS304/316/316L actuator;
•Valve body material: SS304/316/316L
• Normal close type or Normal open type for choosing

Model:
P4300 Series Angle Seat Valve (Weld ends )
Brand:
NEU-MASTER
Code:
PV400 Angle Seat Valve

Availability:



Inquire Add to Basket

Product Description

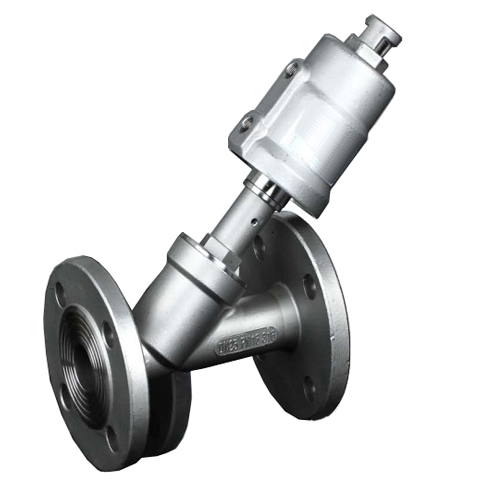

PV400 Series Angle Seat Valve (With Flange Ends)

•2/2-way angle seat valve for medium up to +180°C,

•Thread Port connection DN 15-100

•Actuator:SS304/316/316L material for choosing

•Valve body material: SS304/316/316L for choosing

•NC and NO universal actuators with modular universal accessory program up to control heads

•Flange Ends

PDF Catalog:

PV400 Pneumatically Operated Angle Seat Drain Valve.pdf

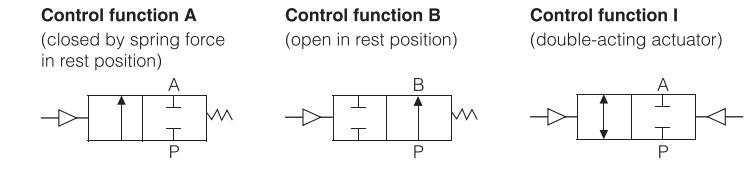

Product Symbol: Angle seat valve:

PV400-Series-Pneumatically-operated-angle-seat-valve-Symbol

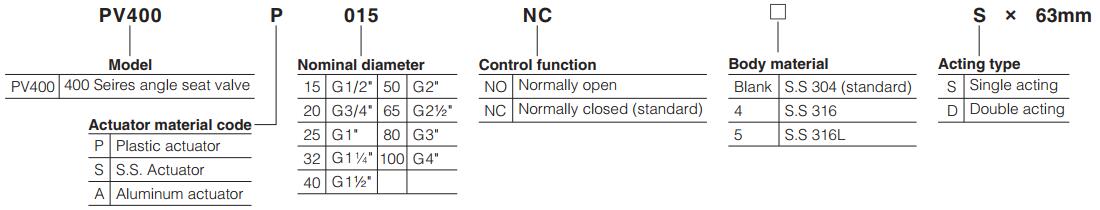

Angle seat valve ordering code:

PV400-Series-Pneumatically-operated-angle-seat-valve-with-flange-ordering-code

●PV400 Series plunger pilot angle seat valve is propelled by a piston actuator, either single acting or double acting.

●Actuators are made of three different materials, applicable to different working temperature:

●2/2 Way stainless steel valve with big flow capacity V type seals ensure reliable and effective sealing.

●Maintenence free, compatible with various accessories.

●Direction indicating, stroke limiting or manual switching can be achieved conveniently.

Product Detailes:

Model Specification	Normally Closed	P015NC	P020NC	P025NC	P032NC	P040NC	P050NC	P065NC
	Normally Open	P015NO	P020NO	P025NO	P032NO	P040NO	P050NO	P065NO
Material of body/ Actuator		S.S304 316 /PA
Operating method		Plunger pilot
Ambient and fluid		Air, Water, Oil, Steam (50CTS Bellow)
Port size		G1/2"	G3/4"	G1"	G1 "	G1½"	G2"	G2½"
Nominal diameter (mm)		13	18	24	31	35	45	61
Kv (m3/h)		4.2	9	19	33	42	59	90
Model Specification	Normally Closed	S015NC	S020NC	S025NC	S032NC	S040NC	S050NC	S065NC
	Normally Open	S015NO	S020NO	S025NO	S032NO	S040NO	S050NO	S065NO
Material of body/ Actuator		S.S304 316 /PA
Angle Seat seal		PTFE/FPM
Stem seal		PTFE/FPM
Piston seal		PTFE/FPM/NBR
Tempreture of medium	PTFE	-10~200℃
	FPM	-10~150℃
Installing		Downsteam/Upsteam

1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.

What's kind of thread we could supply ?

The NPT thread port , PT thread port,G thread port .

Other special port thread request please contact with us .

How about the lead time of the PV400 Angle Seat Valve , delivery time ?

Normally we keep some stock , so the lead time will less than 7 work days .

Is the Valve sample for free ?

Yes .

Certification:

ISO certificate;CE certificate

Pakaging&Delivery

Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days

Note: Angle Seat Valve, pneumatic angle seat valve, angle seat valve manufatures, Angle Seat Drain Valve, pneumatic angle valve, Air actuated valve, Air actuated angle seat valve, angle seat, angle type valve, angle type control valve are for the liquid flow control.
