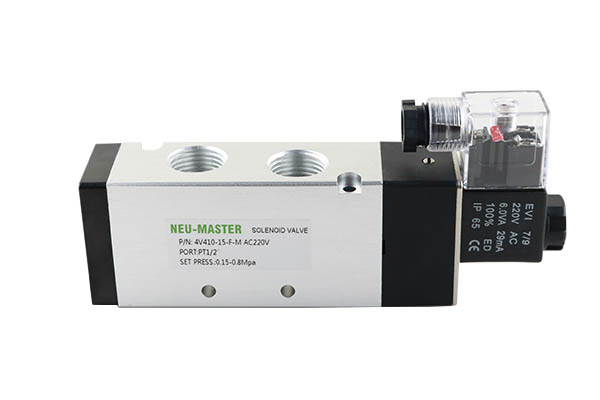

4V400 Series Pneumatic Valve / Pneumatic Solenoid Valve 12V 24V 110V 220V (5/2 way 5/3 way)
Product Name : Pneumatic Valve;Model : 4V410-15;
Voltage:AC220V;AC110V;AC24V;DC24V;DC12V;
Thread Diameter : 1/8"; Operating Pressure : 0.15-0.8MPa
Material : Metal, Plastic;Color : As Picture Shown
Weight : 720g;Package Content : 1 x Solenoid Valve
Solenoid Air Valve 5port 2 position /5port-3 Position
4V410 Series Pneumatic Valve Air Solenoid Valve.pdf

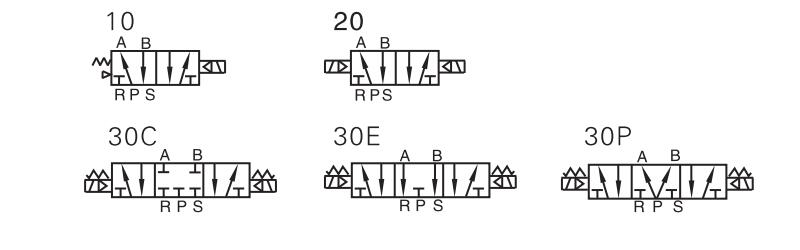

4V400 Series Pneumatic Valve Product Symbol:
Electric Solenoid Valve 5/2 ways : The valve piston will move between two poles .
Electric Solenoid Valve 5/3 ways 30C/30E/30P: The valve piston will move between three position .

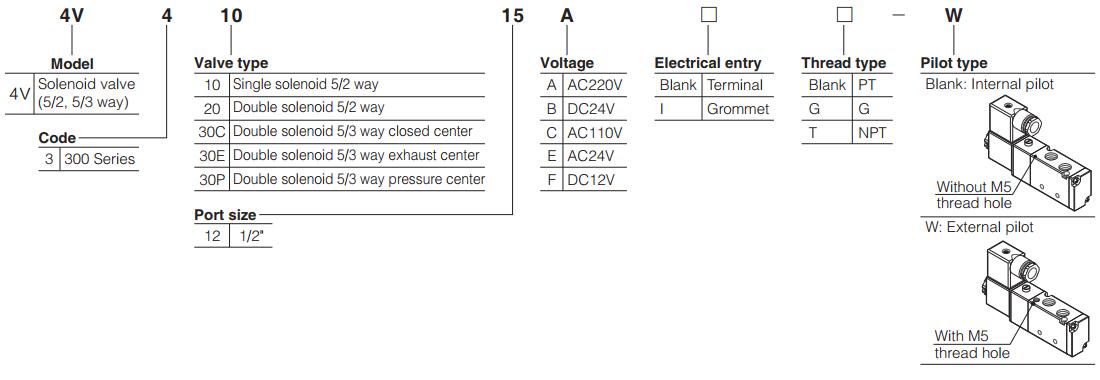

4V400 Series Pneumatic Valve Ordering Code:
4V400 Series Pneumatic Valve Specification
Model Pneumatic valve | 4V410-15 | 4V420-15 | 4V430C-15 | 4V430E-15 | 4V430P-15 |
Fluid | Air(to be filtered by 40μm filter element) | ||||
Acting | Internal pilot or external pilot | ||||
Port size ① | In=Out=Exhaust=PT1/2 | ||||
Orifice size | 50.0mm2(Cv=2.79) | 30.0mm2(Cv=1.68) | |||
Valve type | 5 port 2 position | 5 port 3 position | |||
Operating pressure | 0.15~0.8MPa(21~114psi) | ||||
Proof pressure | 1.2MPa(175psi) | ||||
Temperature ℃ | -20~70 | ||||
Material of body | Aluminum alloy | ||||
Lubrication ② | Not required | ||||
Max. frequency ③ | 3 cycle/sec | ||||
Weight(g) | 590 | 720 | 770 | ||
4V400 Series Pneumatic Valve Solenoid Coil Specification:
Pneumatic Valve Solenoid Secifications | |||||
Standard voltage | AC220V | AC110V | AC24V | DC24V | DC12V |
Scope of voltage | AC: ±15% DC: ±10% | ||||
Power consumption | 4.5VA | 4.5VA | 5.0VA | 3.0W | 3.0W |
Protection | IP65(DIN40050) | ||||
Temperature classification | B Class | ||||
Electrical entry | Terminal, Grommet | ||||
Activating time | 0.05 sec and below | ||||
1. Pilot-oriented mode: Internal pilot or external pilot.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Three position solenoid valves have three kinds of central functionfor your choice.
4. Double control solenoid valves have memory function.
5. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
6. No need to add oil for lubrication.
7. It is available to form integrated valve group with the base to save installation space.
8. Affiliated manual devices are equipped to facilitate installation and debugging.
9. Several standard voltage grades are optional.
Where the Pneumatic Valve were used ?
Normally it were used to control the air cylinder(Pneumatic cylinder) .
Usage:
1. Before installing, be sure the Directional Control Valve hasn't been damaged via transportation.
2. It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P: is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the 4V400 Series Pneumatic Valve, delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air Solenoid valve, Pneumatic Valve, Pneumatic solenoid Valve, 5 Way Solenoid Valve, Air Solenoid are all for control the air direction for the air tools , air cylinders.
