4V210 Series Air Solenoid Valve 12V 24V 110V 220V Size from 1/4 To 1/2 (5/2way;5/3way)
Product Name : Air Solenoid Valve;Model : 4V200/4V100/4V300/4V400;
Voltage:AC220V;AC110V;AC24V;DC24V;DC12V;
Thread Diameter : 1/8 to 1/2 "; Operating Pressure : 0.15-0.8MPa
Material : Metal, Plastic;Color : As Picture Shown
Weight : 360g; Package Content : 1 x Solenoid Valve
Solenoid Air Valve Type: 5port 2 position /5port-3 Position
4V Series Air Solenoid Valve.pdf

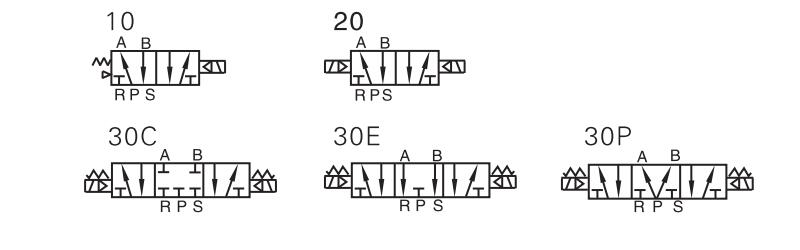

4V200 Series Air Solenoid Valve Product Symbol:

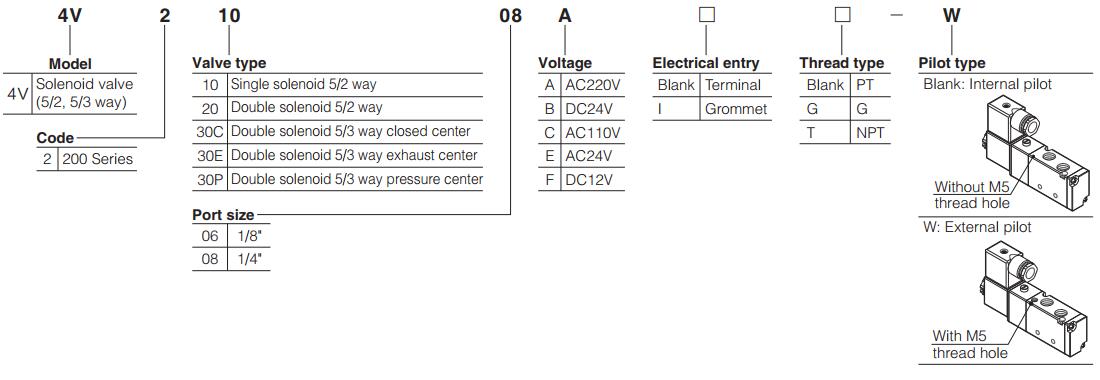

4V200 Series Air Solenoid Valve Ordering Code:
4V210 Series Air Solenoid Valve Specification:
Model Air Solenoid Valve | 4V210-06 4V220-06 | 4V230C-06 4V230E-06 4V230P-06 | 4V210-08 4V220-08 | 4V230C-08 4V230E-08 4V230P-08 |
Fluid | Air(to be filtered by 40μm filter element) | |||
Acting | Internal pilot or external pilot | |||
Port size ① | In=Out=Exhaust=PT1/8 | In=Out=PT1/4 Exhaust=PT1/8 | ||
Orifice size | 14.0mm2(Cv=0.78) | 12.0mm2(Cv=0.67) | 16.0mm2(Cv=0.89) | 12.0mm2(Cv=0.67) |
Valve type | 5 port 2 position | 5 port 3 position | 5 port 2 position | 5 port 3 position |
Operating pressure | 0.15~0.8MPa(21~114psi) | |||
Proof pressure | 1.2MPa(175psi) | |||
Temperature ℃ | -20~70 | |||
Material of body | Aluminum alloy | |||
Lubrication ② | Not required | |||
Max. frequency ③ | 5 cycle/sec | 3 cycle/sec | 5 cycle/sec | 3 cycle/sec |
Weight(g) | 4V210-06:220 4V220-06:320 | 360 | 4V210-08:220 4V220-08:320 | 360 |
4V210 Series Air Solenoid Valve Solenoid Coil Specification:
Item | Air Solenoid Coil specifications | ||||
Standard voltage | AC220V | AC110V | AC24V | DC24V | DC12V |
Scope of voltage | AC: ±15% DC: ±10% | ||||
Power consumption | 4.5VA | 4.5VA | 5.0VA | 3.0W | 3.0W |
Protection | IP65(DIN40050) | ||||
Temperature classification | B Class | ||||
Electrical entry | Terminal, Grommet | ||||
Activating time | 0.05 sec and below | ||||
1. Pilot-oriented mode: Internal pilot or external pilot.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Three position solenoid valves have three kinds of central functionfor your choice.
4. Double control solenoid valves have memory function.
5. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
6. No need to add oil for lubrication.
7. It is available to form integrated valve group with the base to save installation space.
8. Affiliated manual devices are equipped to facilitate installation and debugging.
9. Several standard voltage grades are optional.
Where the Pneumatic Solenoid Valve were used ?
Normally it were used to control the air cylinder(Pneumatic cylinder) .
Usage:
1. Before installing, be sure the Directional Control Valve hasn't been damaged via transportation.
2. It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P: is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the 4V210 Series Air Solenoid Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air Solenoid valve, Pneumatic Solenoid valve, Pneumatic solenoid, Air Solenoid, Pneumatic Valve,Compressed Air Solenoid Valve,Air Solenoid Valve 12V,Pneumatic Air Valve,Air Solenoid Valve 24V are all for control the air direction for the air tools , air cylinders.
