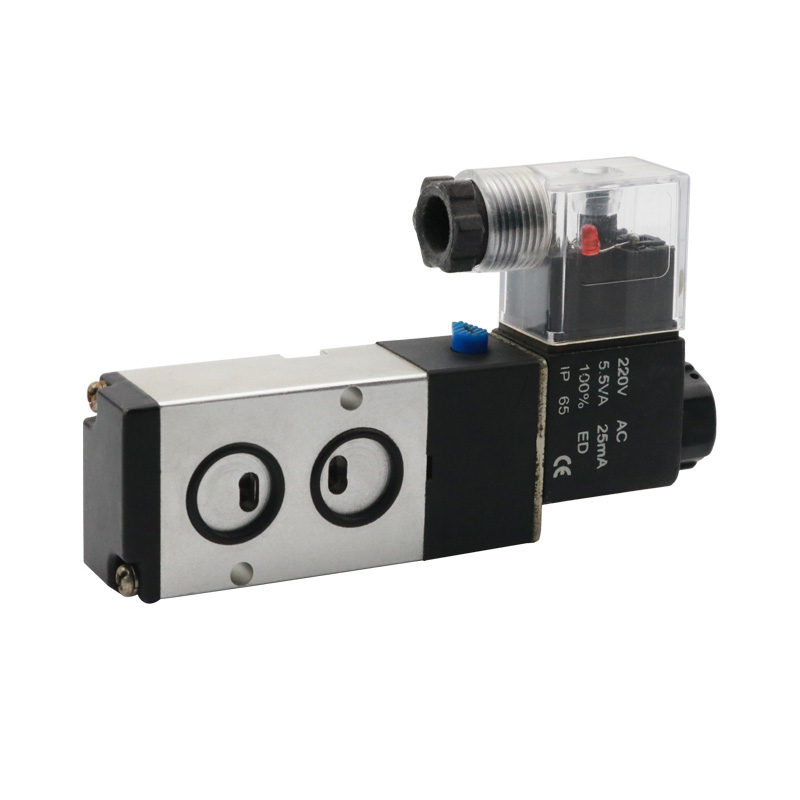

4M (NAMUR) Series Namur Valve Solenoid Control Port Size 1/8 To 1/2" Voltage 12V 24V 110V 220V
4M Series Namur Valve ; Solenoid Control
Parameters: Fluid: Air; Acting: Internal piloted; Port size: In=Out=1/4″;
Valve type: Single solenoid, 5 port 2 position; Operating pressure: 0.15~0.8Mpa;
Standard voltage: AC220V, AC110V, AC24V, DC24V, DC12V.
Equivalent to AIRTAC 4M series namur valve
4M NAMUR Valve Air Solenoid Valve.pdf

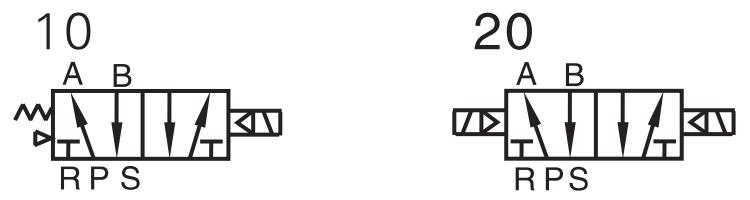

4M Namur Valve Symbol:

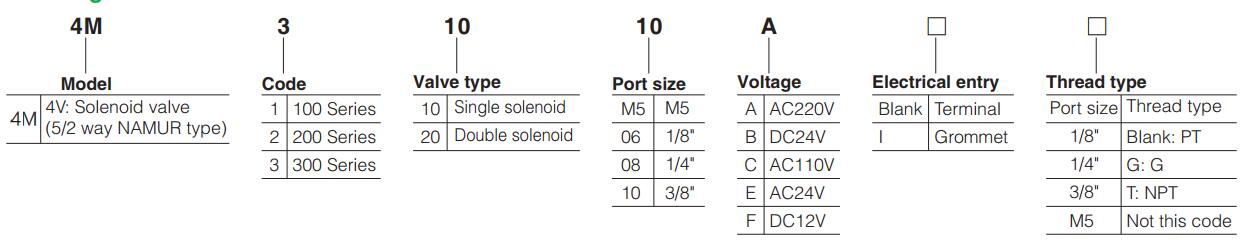

Ordering Code:
Note: With the transforming plate， the 5/2way style could be changed to 3/2way style mamur valve.
4M NAMUR Valve Specification:
Model namur valve | 4M110-M5 4M120-M5 | 4M110-06 4M120-06 | 4M210-06 4M220-06 | 4M210-08 4M220-08 | 4M310-08 4M320-08 | 4M310-10 4M320-10 |
Fluid | Air(to be filtered by 40μm filter element) | |||||
Acting | Internal piloted | |||||
Port size ① | In=Exhaust =M5 | In=Exhaust =PT1/8 | In=Exhaust =PT1/8 | In=PT1/4 Exhaust=PT1/8 | In=Exhaust =PT1/4 | In=PT3/8 Exhaust=PT1/4 |
Orifice size | 5.5mm2 (Cv=0.31) | 12.0mm2 (Cv=0.67) | 14.0mm2 (Cv=0.78) | 16.0mm2 (Cv=0.89) | 25.0mm2 (Cv=1.40) | 30.0mm2 (Cv=1.68) |
Valve type | 5 port 2 position | |||||
Operating pressure | 0.15~0.8MPa(21~114psi) | |||||
Proof pressure | 1.2MPa(175psi) | |||||
Temperature ℃ | -20~70 | |||||
Material of body | Aluminum alloy | |||||
Lubrication ② | Not required | |||||
Max. frequency ③ | 5 cycle/sec | 4 cycle/sec | ||||
Weight(g) | 4M110:120 4M120:175 | 4M210:220 4M220:320 | 4M310:310 4M320:400 | |||
4M NAMUR Valve Solenoid Coil Specification:
Item namur valve coil | 4M110 4M120 | 4M210 4M220 4M310 4M320 | ||||||||
Standard voltage | AC220V | AC110V | AC24V | DC24V | DC12V | AC220V | AC110V | AC24V | DC24V | DC12V |
Scope of voltage | AC: ±15% DC: ±10% | |||||||||
Power consumption | 3.5VA | 3.5VA | 4.0VA | 2.5VA | 2.5VA | 4.5VA | 4.5VA | 5.0VA | 3.0W | 3.0W |
Protection | IP65(DIN40050) | |||||||||
Temperature classification | B Class | |||||||||
Electrical entry | Terminal, Grommet | |||||||||
Activating time | 0.05 sec and below | |||||||||
4M NAMUR Valve Product feature
1.Internally piloted structure.
2.Structure in sliding column mode: good tightness and sensitive reaction.
3.Double control solenoid valves have memory function.
4.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5.No need to add oil for lubrication.
6.Install in the side plate with the surface upward, which can be used by directly connecting with the actuators.
7.Affiliated manual devices are equipped to facilitate installation and debugging.
8.Several standard voltage grades are optional.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the 4M Namur Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note:Namur solenoid valve, namur valve, namur mount solenoid Valve, namur solenoid, namur type solenoid valve, namur pilot valve, namur mounting valve, namur standard valve, namur interface valveare all for control the air direction for the air tools , air cylinders, Pneumatic angle valve.
