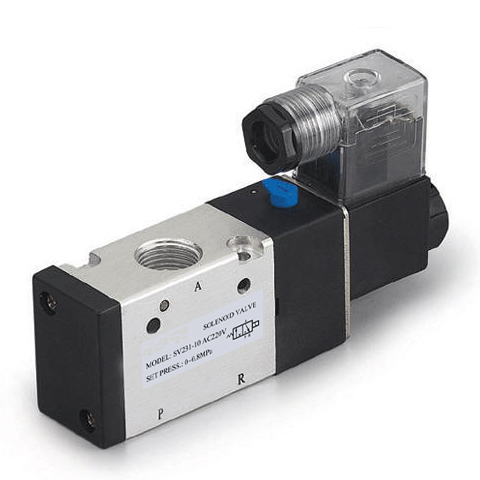

3V300 Series Electric Air Valve Port Size 1/8" 1/4" 3/8 DC12V 24V AC110V 220V (3/2 Way)
Type: 3V300 3/2 way Electric Air Valve
Model: 3V310-08-DC12V ;3V310-10 -DC12V
Coil: DC12V, LED light ; Air solenoid valve 12V ;AC220V;AC110V;AC24V;DC24V;DC12V; are available .
3V310-08 Ports:1/4" Exhaust: 1/4" ; 3V310-10 Ports:3/8" Exhaust: 3/8"
Effective Cross Sectional Area:3V310-08 :25 sq mm CV = 1.39 ; 3V310-10 :30 sq mm CV = 1.67 ;
Operation:Internal Piloted ;Working Pressure:0.15 – 0.8 Mpa / 22 – 116 psi ;Max. Tested Pressure:1.2 Mpa / 174 psi

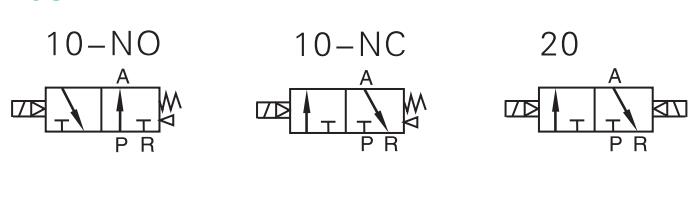

3V300 Electric Air Valve Symbol:
Electric Air Valve 3/2 ways NO : Normal open
Electric Air Valve 3/2 ways NC: Normal close

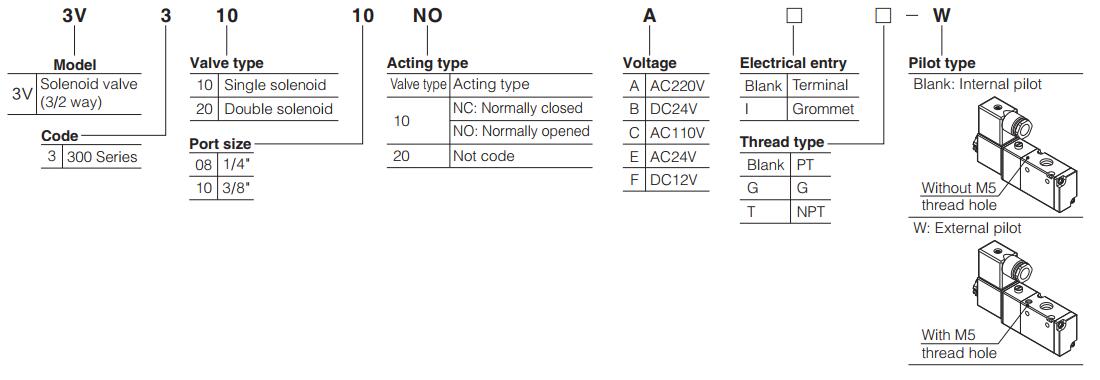

3V300 Electric Air Valve Ordering Code:
3V300 Electric Air Valve Specification:
Model electric air valve | 3V310-08 | 3V320-08 | 3V310-10 | 3V320-10 |
Pneumatic valve Fluid | Air(to be filtered by 40μm filter element) | |||
Pneumatic valve Acting | Internal pilot or external pilot | |||
Port size ① | In=Out=PT1/4 | In=Out=PT3/8 | ||
Orifice size | 25.0mm2(Cv=1.39) | 30.0mm2(Cv=1.67) | ||
Valve type | 3 port 2 position | |||
Lubrication ② | Not required | |||
Operating pressure | 0.15~0.8MPa(21~114psi) | |||
Proof pressure | 1.2MPa(175psi) | |||
Temperature ℃ | -20~70 | |||
Material of body | Aluminum alloy | |||
3V300 Electric Air Valve Coil Specification:
Item pneumatic coil | Electric Air Valve specifications | ||||
Standard voltage | AC220V | AC110V | AC24V | DC24V | DC12V |
Scope of voltage | AC: ±15% DC: ±10% | ||||
Power consumption | 4.5VA | 4.5VA | 5.0VA | 3.0W | 3.0W |
Protection | IP65(DIN40050) | ||||
Temperature classification | B Class | ||||
Electrical entry | Terminal, Grommet | ||||
Activating time | 0.05 sec and below | ||||
Max. frequency ① | 5 cycle/sec | ||||
① The maximum actuation frequency is in the no-load state.
1. Pilot-oriented mode: Internal pilot or external pilot.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Three position solenoid valves have three kinds of central functionfor your choice.
4. Double control solenoid valves have memory function.
5. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
6. No need to add oil for lubrication.
7. It is available to form integrated valve group with the base to save installation space.
8. Affiliated manual devices are equipped to facilitate installation and debugging.
9. Several standard voltage grades are optional.
Where the Electric Air Valve were used ?
Normally it were used to control the air cylinder(Pneumatic cylinder) .
Usage:
1. Before installing, be sure the Directional Control Valve hasn't been damaged via transportation.
2. It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as"voltage",actuation frequency","working pressure"and"scope of application temperature"),then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P:is the air intake, A(B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Electric Air Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Pneumatic Solenoid valve, Air Solenoid valve, Pneumatic Solenoid, Air solenoid, Pneumatic valve, Compressed air solenoid valve, electric air valve, air solenoid valve 12v, air solenoid valve 24v, electric air valve 12v are all for control the air direction for the air tools , air cylinders.
