AIRTAC Standard 3V3 solenoid valve
NEU-MASTER
3V3-08
Availability: | |
---|---|

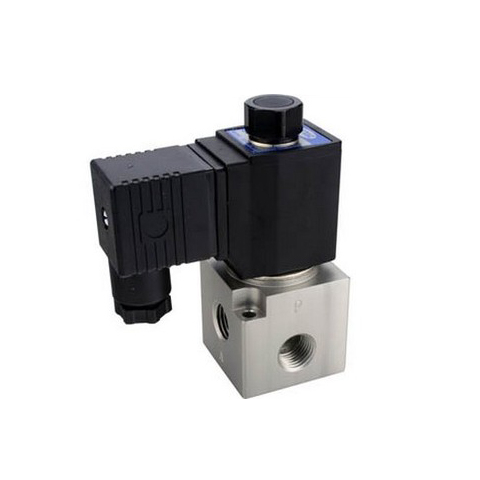

3V3 Series Air Solenoid Valve Equal To AIRTAC Standard 3V3 Solenoid Valve DC12V 24V AC110V 220V
Direct acting type and normally closed mode,flexible in direction change.
This Pneumatic Valve no need to add oil for lubrication
Several electric valves can be installed integrately to save installation space
Affiliated manual devices are equipped to facilitate installation and dubugging
Several standard voltage grades are optional on the air solenoid
Can be used under vacuum condition.
3V Series Air Solenoid Valve.pdf

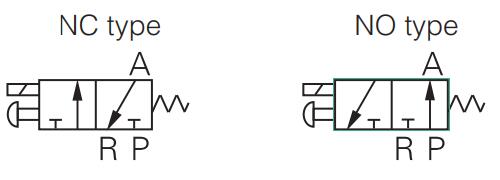

3V3 Series Air Solenoid Valve Product Symbol:
NC:Normal Open Type Air Solenoid Valve
NO:Nprmal Close Type Air Solenoid Valve

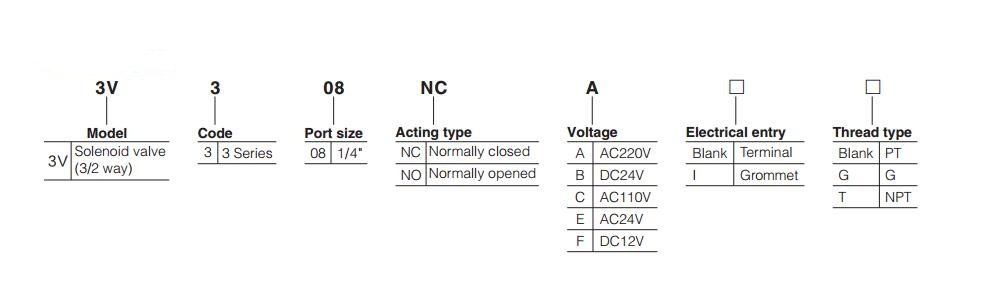

3V3 Series Air Solenoid Valve Ordering Code:
3V3 Solenoid Air Solenoid Valve Specification:
Model Air solenoid valve | 3V308 | |
Fluid | Air(to be filtered by 40μm filter element) | |
Acting | direct acting | |
Port size ① | PT1/4 | |
Vave type | 3 port 2 position | |
Orifice size | 11mm2(Cv=0.62) | |
Lubrication | Not required | |
Operating Pressure | Common | 0~0.8MPa(0~114psi) |
Vacuum | -102.2kPa~0.1MPa(-1.45~14.2psi) | |
Proof pressure | 1.2MPa(175psi) | |
Temperature ℃ | -20~70 | |
Material of body | Aluminum alloy |
3V3 Solenoid Air Valve Coil Specification:
Item Solenoid Air Valve Coil | specifications | ||||
Standard voltage | AC220V | AC110V | AC24V | DC24V | DC12V |
Scope of voltage | AC: ±15% DC: ±10% | ||||
Power consumption | AC: 10VA DC: 6.5W | ||||
Protection | IP65(DIN40050) | ||||
Temperature classification | B class | ||||
Electrical entry | Terminal, Grommet | ||||
Activating time | 0.05 sec and below | ||||
Max. frequency ① | 10 cycle/sec |
Usage:
1. Before installing, be sure the Directional Control Valve hasn't been damaged via transportation.
2. It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P: is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
Where the Airtac standard 3V3 Air Solenoid Valve were used ?
The valve normally was used to control the small single action cylinder.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Electric Air Solenoid Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air Solenoid valve, Pneumatic Solenoid Valve, Directional Control Valve, Pneumatic Control Valve, Pneumatic Solenoid are all for control the air direction for the air tools , air cylinders.
