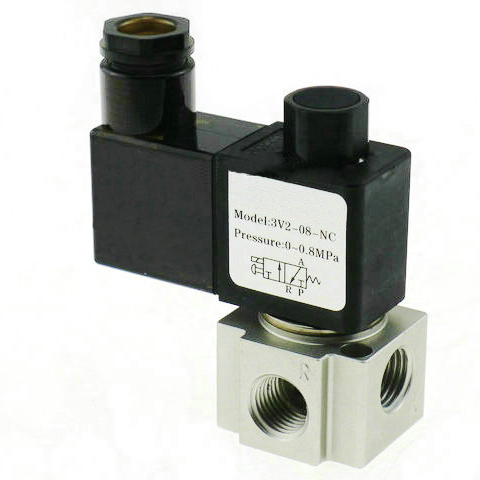

3V2 Series pneumatic air valve AIRTAC Standard Port Size M5 1/8" DC12V 24V AC110V 220V
Direct acting type and normally closed mode,flexible in direction change.
This Pneumatic Air Valve no need to add oil for lubrication
Several electric valves can be installed integrately to save installation space
Affiliated manual devices are equipped to facilitate installation and dubugging
Several standard voltage grades are optional on the air solenoid
Can be used under vacuum condition.
3V2 Series Pneumatic Air Valve.pdf

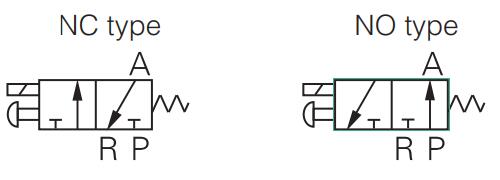

3V2 Series pneumatic air valve Symbol:

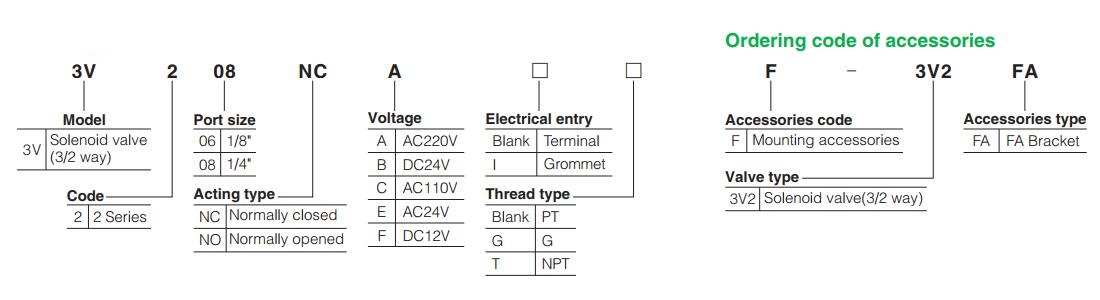

3V2 Series pneumatic air valve Ordering Code:
3V2 Series pneumatic air valve Specification:
Pneumatic Air Valve Model | 3V2-06 | 3V2-08 | |
Fluid | Air(to be filtered by 40μm filter element) | ||
Acting | Direct acting | ||
Port size ① | PT1/8 | PT1/4 | |
Vave type | 3 port 2 position | ||
Orifice size | 3.2mm2(Cv=0.18) | 3.4mm2(Cv=0.19) | |
Lubrication | Not required | ||
Operating Pressure | Common | 0~0.8MPa(0~114psi) | |
Vacuum | -102.2kPa~0.1MPa(-1.45~14.2psi) | ||
Proof pressure | 1.2MPa(175psi) | ||
Temperature ℃ | -20~70 | ||
3V2 Series Pneumatic Air Valve Coil Specification:
Item | Pneumatic Air Valve Coil specifications | ||||
Standard voltage | AC220V | AC110V | AC24V | DC24V | DC12V |
Scope of voltage | AC: ±15% DC: ±10% | ||||
Power consumption | AC: 7VA DC: 7.0W | ||||
Protection | IP65(DIN40050) | ||||
Temperature classification | B class | ||||
Electrical entry | Terminal, Grommet | ||||
Activating time | 0.05 sec and below | ||||
Max. frequency ① | 10 cycle/sec | ||||
Npt Thread are available .
1. Before installing, be sure the valve hasn't been damaged via transportation.
2. It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
Where the Airtac standard 3V2 Pneumatic Air Valve were used ?
The valve normally was used to control the small single action cylinder.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Pneumatic Air Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air Solenoid valve, Pneumatic Air Valve, Pneumatic solenoid valve, Pneumatic Solenoid, Air Solenoid are all for control the air direction for the air tools , air cylinders.
