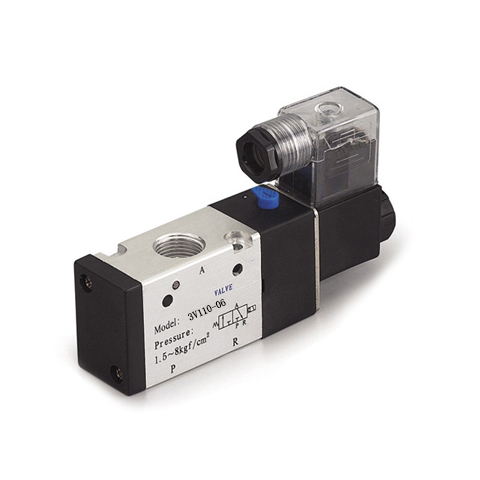

3V100 Series Airtac Solenoid Valve Port Size 1/8" DC12V 24V AC220V 110V (3 Way/2 Position)
3V100 Series Airtac Solenoid Valve/Pneumatic Solenoid Valve(3/2 way)
Voltage:AC220V;AC110V;AC24V;DC24V;DC12V;
Thread Diameter : 1/8";Operating Pressure : 0.15-0.8MPa
Material : Aluminium, Plastic,Brass ;Color : As Picture Shown
Package Content : 1 x Solenoid Valve
3V100 Series Airtac Solenoid Valve.pdf
3V100 Airtac Solenoid Valve Symbol:
Airtac Solenoid Valve 3/2 ways NO : Normal open
Airtac Solenoid Valve 3/2 ways NC: Normal close

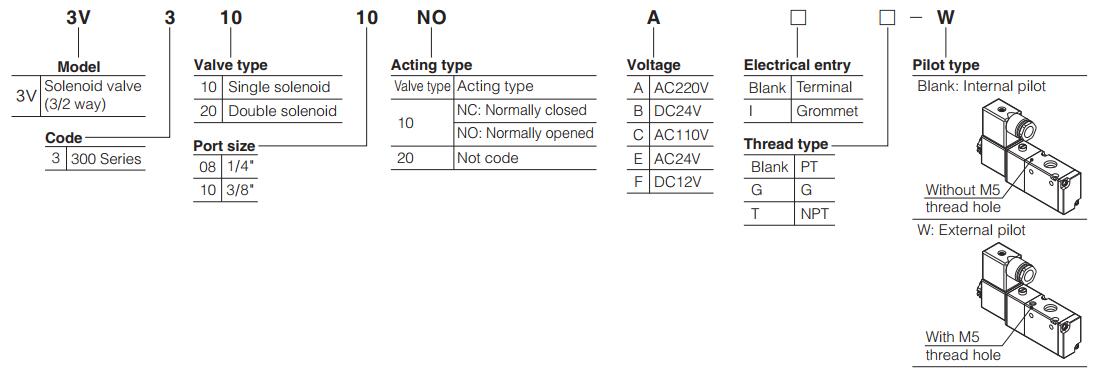

3V100 Airtac Solenoid Valve Ordering Code:
3V100 Airtac Solenoid Valve Specification:
Airtac Solenoid Valve Model | 3V110-M5 | 3V120-M5 | 3V110-06 | 3V120-06 |
Fluid | Air(to be filtered by 40μm filter element) | |||
Acting | Internal pilot or external pilot | |||
Port size ① | M5 | PT1/8 | ||
Orifice size | 5.5mm2(Cv=0.31) | 12.0mm2(Cv=0.67) | ||
Valve type | 3 port 2 position | |||
Lubrication ② | Not required | |||
Operating pressure | 0.15~0.8MPa(21~114psi) | |||
Proof pressure | 1.2MPa(175psi) | |||
Temperature ℃ | -20~70 | |||
Material of body | Aluminum alloy | |||
3V100 Airtac Solenoid Valve Coil Specification:
Item | Airtac Solenoid Valve Coil specifications | ||||
Standard voltage | AC220V | AC110V | AC24V | DC24V | DC12V |
Scope of voltage | AC: ±15% DC: ±10% | ||||
Power consumption | 3.5VA | 3.5VA | 4.0VA | 2.5W | 2.5W |
Protection | IP65(DIN40050) | ||||
Temperature classification | B Class | ||||
Electrical entry | Terminal, Grommet | ||||
Activating time | 0.05 sec and below | ||||
Max. frequency ① | 5 cycle/sec | ||||
1. Pilot-oriented mode: Internal pilot or external pilot.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Three position solenoid valves have three kinds of central functionfor your choice.
4. Double control solenoid valves have memory function.
5. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
6. No need to add oil for lubrication.
7. It is available to form integrated valve group with the base to save installation space.
8. Affiliated manual devices are equipped to facilitate installation and debugging.
9. Several standard voltage grades are optional.
Where the Airtac Solenoid Valve were used ?
Normally it were used to control the air cylinder(Pneumatic cylinder) .
Usage:
1. Before installing, be sure the Directional Control Valve hasn't been damaged via transportation.
2. It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P: is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Airtac Solenoid Air Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Airtac solenoid valve, pneumatic solenoid valve, air solenoid, pneumatic solenoid, pneumatic valve, air solenoid valve 12v, pneumatic air valve, pneumatic direction control valve, pneumatic direction control valve, air solenoid valve 24vdc, electric solenoid air valve are all for control the air direction for the air tools , air cylinders.
