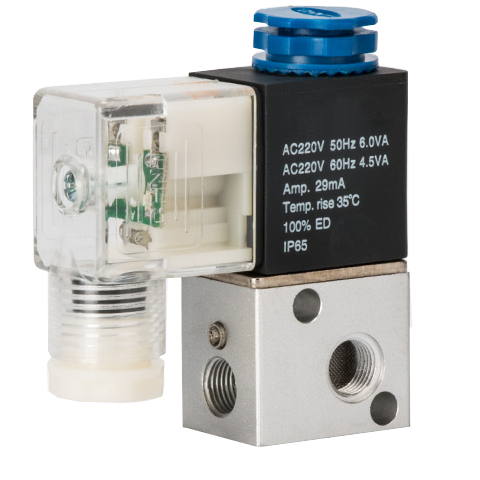

3V1 Series Electric Air Valve Equivalent To AIRTAC 3V1 Series

3V1 Series Electric Air Valve Equivalent To AIRTAC 3V1 Series

Name: 3V1 Series Electric Air Valve Equivalent To AIRTAC 3V1 Series
Brand: NEU-MASTER
Rating: 5.0 (15 reviews)

Equivalent To AIRTAC 3V1 series Electric Air Valve
Parameters: Fluid: Air; Acting: Internal piloted; Port size: In=Out=1/8″; Or M5*0.8
Valve type: Single solenoid, 3 port 2 position; Operating pressure: 0.15~0.8Mpa;
Standard voltage: AC220V, AC110V, AC24V, DC24V, DC12V.
Direct acting type and normally closed mode,flexible in direction change.
No need to add oil for lubrication

Model:
3V1-M5,3V1-06
Brand:
NEU-MASTER
Code:
3V1-M5

Availability:



Inquire Add to Basket

Order Code

3V1 Series Electric Air Valve Equivalent To AIRTAC 3V1 Series DC12 24V 110V 220V

Equivalent To AIRTAC 3V1 series 3 way electric air valve

Parameters: Fluid: Air; Acting: Internal piloted; Port size: In=Out=1/8″; Or M5*0.8

Valve type: Single electric solenoid, 3 port 2 position; Operating pressure: 0.15~0.8Mpa;

Standard voltage: AC220V, AC110V, AC24V, DC24V, DC12V.

Direct acting type and normally closed mode,flexible in direction change.

No need to add oil for lubrication

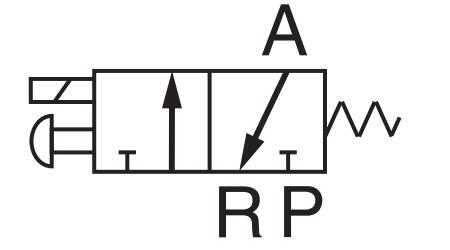

3V1 Series Electric Air Valve Symbol:

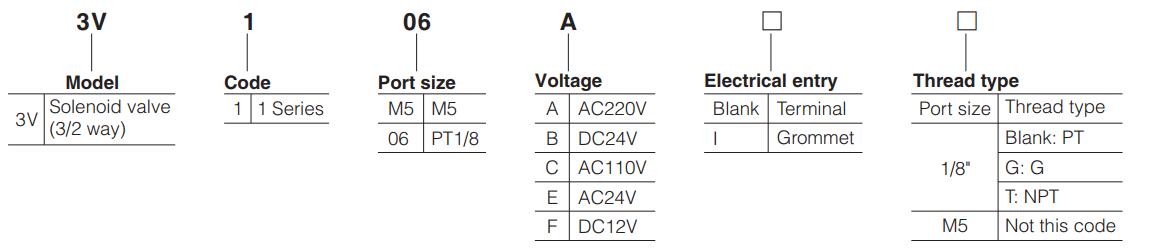

3V1 Series Electric Air Valve Ordering Code:

3V1 Series Electric Air Valve Specification:

Model Electric Air Valve	3V1-M5	3V1-06
Fluid	Air(to be filered by 40μm filter element)
Electric air valve Acting	Direct acting
Port size ①	M5	PT1/8
Valve type	3 port 2 position
Lubrication	Not required
Operating pressure	0~0.8MPa(0~114psi)
Proof pressure	1.2MPa(175psi)
Temperature ℃	-20~70
Orifice size	Φ1.2mm
Material of body	Aluminum alloy

Npt Thread are available .

3V1 Series Electric Air Valve Coil Specification:

Item	specifications
Standard voltage	AC220V	AC110V	AC24V	DC24V	DC12V
Scope of voltage	AC: ±15% DC: ±10%
Power consumption	4.5VA	4.5VA	5.0VA	3.0W	3.0W
Protection	IP65(DIN40050)
Temperature classification	B class
Electrical entry	Terminal, Grommet
Activating time	0.05 sec and below
Max. frequency ①	10 cycle/sec

1. Direct acting type and normally closed mode, flexible in direction change.

2. No need to add oil for lubrication.

3. Several valves can be installed integrately to save installation space.

4. Affiliated manual devices are equipped to facilitate installation and dubugging.

5. Several standard voltage grades are optional.

1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.

What's kind of thread we could supply ?

The NPT thread port , PT thread port,G thread port .

Other special port thread request please contact with us .

How about the lead time of the Electric Air Valve , delivery time ?

Normally we keep some stock , so the lead time will less than 7 work days .

Is the Valve sample for free ?

Yes .

Certification:

ISO certificate;CE certificate

Pakaging&Delivery

Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
