PFDS701 Electronic Pressure Switch
NEU-MASTER
PFDS701 Electronic Pressure Switch
| Availability: | |
|---|---|

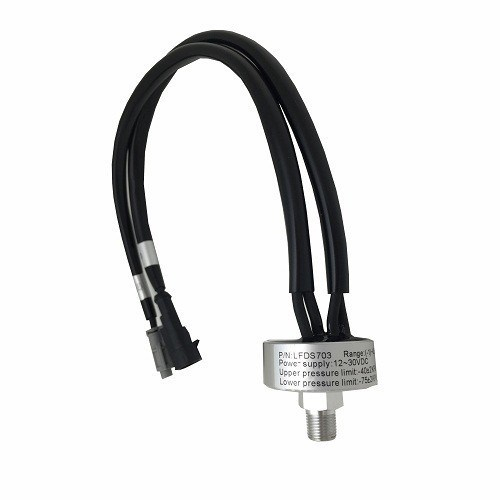

PFDS701 Electronic Pressure Switch Vacuum Pump Control System
Product Details
LFDS701 is widely used in vacuum pump control system of electric cars, diesel vehicle and gasoline vehicles.
LFDS701 has internal MEMS pressure sensor, by collecting warming and comparing of pressure signal to realize the switch tube output of special pressure point.
The product uses pressure sensor that is absolute pressure type, the accuracy will not affect by atmosphere, which can be used in any altitude.
The product has differential output, which reduces the risk of lifespan cutting of controlled device for frequent action nearby critical point.
.
Specification:
MeasurementRange | -1.0～0bar |
Accuracy | ±2.0% FS |
Overload Pressure | Measurement Range×2 |
Bursting Pressure | Measurement Range×4 |
Media | Air and Non hazardous gas |
Output | Switch tube output |
Pressure Type | Absolute Pressure |
Working Temperature | -40～120℃ |
Compensation Temperature | -20～85℃ |
Power Supply | 12~30VDC |
Operating Life | ＞1000000 times |
Response Time | 20ms |
Protection Grade | IP66 |
Shell Material | AL6061 |
Pressure Connection | G1/8 |
Output Driving Capability | ≤20.0A |
Offer PFDS701 Electronic Pressure Switch Vacuum Pump Control System by China PFDS701 Electronic Pressure Switch Vacuum Pump Control System manufacturers.
Provide professional after-sales service and guidance - NINGBO NEU-MASTER PNEUMATIC CO.,TLD.
