PF704 Pressure Switch (50-200 bar)
NEU-MASTER
PF-704
| Availability: | |
|---|---|

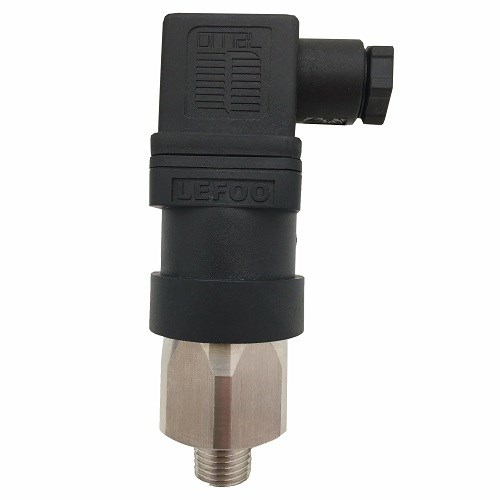

LF704 Pressure Switch (50-200 bar)
Product Details
Piston type perssure switch with DIN43650-A Hirchmann connection, SPDT and 600bar of maximum safety pressure
Specification:
Body | Zinc-plated Steel/Stainless Steel |
Contact | silver cadmium alloy, can be gold plated |
Max voltage | 250VAC/24VDC |
Max currency | 4A |
Working temperature range | -40℃--+100℃(baesd on different diaphragm) |
Life endurance | 1000000 |
Electrical life endurance | 100000 |
Pollution situation | normal |
IP level | IP65 |
Applicabel rule | EN 60730-1 |
Max working pressure | 450bar |
Max safe pressure | 600bar |
Weight | ~140gr |
LF704A Pressure Switch (50-200 bar)
Plunge type perssure switch with 6.4mm blade terminal,SPDT and 600bar of maximum safety pressure
Body | Zinc-plated Steel/Stainless Steel |
Contact | silver cadmium alloy, can be gold plated |
Max voltage | 250VAC/24VDC |
Max currency | 4A |
Working temperature range | -40℃--+100℃(baesd on different diaphragm) |
Life endurance | 1000000 |
Electrical life endurance | 100000 |
Pollution situation | normal |
IP level | IP00 |
Applicabel rule | EN 60730-1 |
Max working pressure | 450bar |
Max safe pressure | 600bar |
Weight | ~95gr |
Offer PF704 Pressure Switch (50-200 bar) by China PF704 Pressure Switch (50-200 bar) manufacturers.
Provide professional after-sales service and guidance - NINGBO NEU-MASTER PNEUMATIC CO.,TLD.
