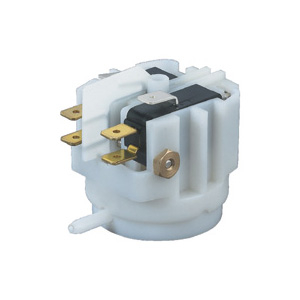

PF40-02 Pressure Switch
NEU-MASTER
PF40-02 Pressure Switch
| Availability: | |
|---|---|
PF40-02 Pressure Switch
Product Details
PF40-02P switch utilizes two high-quality miniature snap-action switches with higher current capacity, SPST or SPDT contact form and switch deadbands (also referred to as mechanical differntial or hysteresis).
The switch is diaphragm operated. Diaphragm material can be selected according to the operating medium, temperature range and other parameters.
Specification:
Model | LF40-02P |
Medium | Non hazardous gas |
Operating PressureRange | 20-800 mbar |
Proof Pressure | 1 Bar |
OperatingTemperatureRange | -10℃to +85℃ |
Contact Arrangement | SPST or SPDT |
Electrical Rating | 25Amps@240VAC,2HP/1HP@120VAC 21Amps@240VAC,2HP/1HP@120VAC 5Amps@240VAC |
Terminals | 6.35 or 4.88 mm male Q.C. |
Connection | Inlet 4.0mm for tube connection (Option: 1/8 NPT or other fittings are available) |
Offer PF40-02 Pressure Switch by China PF40-02 Pressure Switch manufacturers. Provide professional after-sales service and guidance - NINGBO NEU-MASTER PNEUMATIC CO.,TLD.
