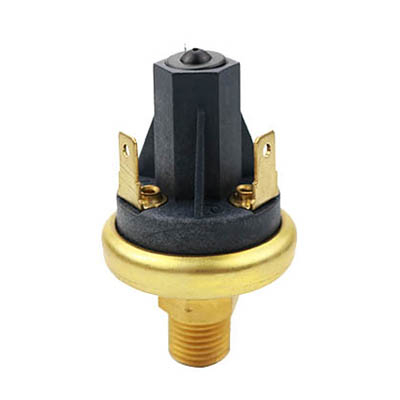

PF20 Extended Duty Hot Tub Pressure Switch (0.5-150 PSI)
NEU-MASTER
PF-20
| Availability: | |
|---|---|
PF20 Extended Duty Pressure Switch (0.5-150 PSI) Air Motor Oils Jet Fuels And Other Similar Hydrocarbon Medium Water
Product Details
The PF20 hot tub pressure switch is specifically designed to stand up to extended duty applications.
This switch is factory set but capable of field adjustment. It features different diaphragms for compatibility with a wide variety of fluids, and various terminations including a Metri-Pack connector that forms a tight seal when connected.
Among the outstanding design benefits are its durable construction, compact size, and enhanced set point integrity.
It can be widely used for pool and spa, anti-skid braking systems, water pump systems, and dental air compressors, heavy construction, off road equipments and other pressure control systems.
Specification:
Series No. | LF20 Hot Tub Pressure Switch (0.5-150 PSI) |
Medium | Air,motor oils, transmission oils, jet fuels and other similar hydrocarbon medium; water (provide with special diaphragm material) |
Pressure Set Point | Factory set from 0.5 to 150 PSI |
Max Operating Pressure | 150 PSI for 0.5-24 PSI set point range 250 PSI for 25-150 PSI set point range |
Proof Pressure | 500 PSI |
Burst Pressure | 750 PSI for 0.5-24 PSI set point range 1250 PSI for 25-150 PSI set point range |
Operating Temperature Range | -40° C to ~ 120° C |
Switch Type | Direct action, blade contact |
Electric Rating | Resistive: 15 AMP- 6 VDC 8 AMP- 12 VDC 4 AMP- 24 VDC Inductive: 1 AMP- 120 VAC 0.5 AMP- 240 VAC |
Contact Arrangement | SPST-N.O., N.C., 1 circuit adjustable dual circuit, or 2 circuits adjustable dual circuit. Also available areN.O./N.O. dual circuit and N.C./N.C. dual circuit.”F. |
Terminals | #8-32 screws, 1/4” blade, Metri-Pack |
Connection | 1/8"NPT Male, 1/4"NPT Male, G1/8" Male, G1/4" Male |
Material | Contact: Silver alloy, gold plated Base: Brass Cover: Glass reinforced polyester Diaphragm:Polyimide film (other materials is optional according to media) |
Options | Plated Steel, plastic or stainless steel base; various base connector thread sizes; wire leads (potted & sealed). |
Agency Approval | UL, CUL, CE |
Offer PF20 Extended Duty Pressure Switch (0.5-150 PSI) Air Motor Oils Jet Fuels And Other Similar Hydrocarbon Medium Water by China PF20 Extended Duty Pressure Switch (0.5-150 PSI) Air Motor Oils Jet Fuels And Other Similar Hydrocarbon Medium Water manufacturers. Provide professional after-sales service and guidance - NINGBO NEU-MASTER PNEUMATIC CO.,TLD.
