PF705 Pressure Switch (1-50 bar)
NEU-MASTER
PF-705
| Availability: | |
|---|---|

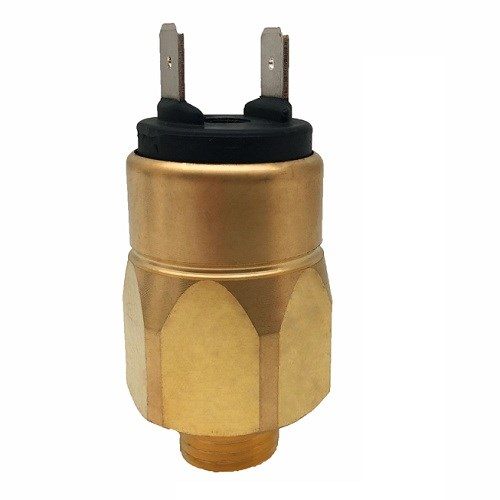

LF705 Pressure Switch (1-50 bar)
Product Details
Diaphragm type perssure switch with 6.4mm plug terminal,brass dody and 80bar of maximum safety pressure
Specification:
Body | Brass |
Contact | silver cadmium alloy, can be gold plated |
Max voltage | 42V |
Max currency | 4A |
Working temperature range | -40℃--+100℃(baesd on different diaphragm) |
Life endurance | 1000000 |
Electrical life endurance | 100000 |
Pollution situation | normal |
IP level | IP00(without cover) |
With cover | IP54(rubber cover) |
With cover | IP67(potting resin cover) |
Applicabel rule | EN 60730-1 |
Max working pressure | 40bar |
Burst pressure | 80bar |
Weight | ~85gr |
LF705A Pressure Switch (1-50 bar)
Diaphragm type perssure switch with screw terminal,brass dody and 80bar of maximum safety pressure
Body | Brass |
Contact | silver cadmium alloy, can be gold plated |
Max voltage | 42V |
Max currency | 4A |
Working temperature range | -40℃--+100℃(baesd on different diaphragm) |
Life endurance | 1000000 |
Electrical life endurance | 100000 |
Pollution situation | normal |
IP level | IP00(without cover) |
With cover | IP54(rubber cover) |
With cover | IP67(potting resin cover) |
Applicabel rule | EN 60730-1 |
Max working pressure | 40bar |
Burst pressure | 80bar |
Weight | ~85gr |
LF705B Pressure Switch (1-50 bar)
Diapragm type perssure switch with DIN 72585 A1-2.1 connection,brass dody and 80bar of maximum safety pressure
Body | Brass |
Contact | silver cadmium alloy, can be gold plated |
Max voltage | 42V |
Max currency | 4A |
Working temperature range | -40℃--+100℃(baesd on different diaphragm) |
Life endurance | 1000000 |
Electrical life endurance | 100000 |
Pollution situation | normal |
IP level | IP00(without cover) |
Applicabel rule | EN 60730-1 |
Max working pressure | 40bar |
Burst pressure | 80bar |
Weight | ~85gr |
Offer PF705 Pressure Switch (1-50 Bar) PF705A/B Pressure Switch (1-50 Bar) by China
PF705 Pressure Switch (1-50 Bar) PF705A/B Pressure Switch (1-50 Bar)
