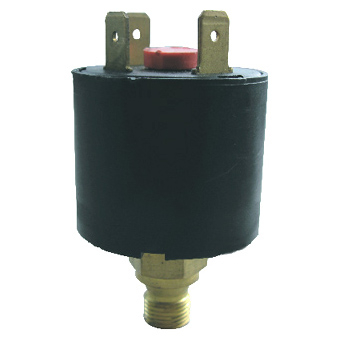

PF26 Pressure Switch (0.2-10 Bar) Air, Water, Steam
NEU-MASTER
PF-26
| Availability: | |
|---|---|
PF26 Pressure Switch (0.2-10 Bar) Air, Water, Steam
Product Details
PF26 is a compact pressure switch capable of sensing pressure range from as low as 0.2 bar up to 6bar and 10bar. The switching mechanism is an internal snap action switch offering high current capacities with options of SPST, SPDT, normally open and normally closed contacts.
It can be widely used in applications, where pressure of air, steam, gas, water etc. need to be controlled accurately and hysteresis is required.
Specification:
Series No. | PF26 | |
Medium | air, water, steam, or other media suitable for brass | |
Operating Pressure range | 0.2-6 bar | 0.2-10 bar |
Proof Pressure | 12 bar | 12bar |
Differential Pressure ( hysteresis ) | Fixed 0.1-0.4 bar; Adjustable 0.2-0.8 bar | |
Operating TemperatureRange | - 30° C to ~ 125° C | |
Switch Type | Snap action | |
Electric Rating | Normally Closed: 15 (1.5) A -250VAC NOrmally Open: 9 (0.9) A -250VAC | |
Contact Arrangement | SPST -N.O., SPST-N.C., SPDT | |
Terminals | 6.3 mmor4.8 mmquick connect tab | |
Connection | G1/8 male or 1/8"NPT male, other type of thread is available on request | |
