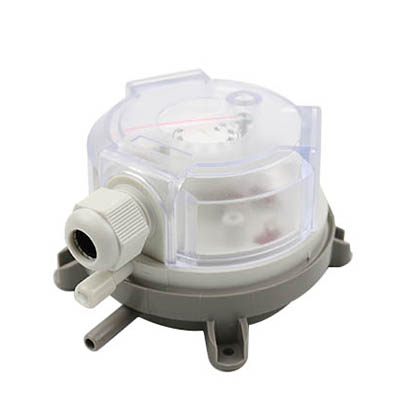

PF32 Differential Pressure Switch (20-5000Pa)
NEU-MASTER
PF-32
| Availability: | |
|---|---|
LF32-05MOD Differential Pressure Switch
Product Details
PF32-MOD series pressure switch is capable to sense tiny pressure change and widely used to control the flue aerator, to monitor the fan and air conditioner. Due to its outstanding design, the set point can been adjust visually.
This protocol operates in RS485 hardware for inquiring the switch operation under the standard of Modbus RTU.
Specification:
Model | PF32-05MOD |
Media | Air, non-combustible and non-aggressive gases |
Max operating pressure | 10kPa |
Mounting position | Diaphragm in any vertical plane |
Degree of protection | IP45(with cover) |
Operating temperature | -40℃~+85℃ |
Connecting | RS485 |
Electrical Rating | Input pressure：DC12-24V±10% Power consumption：140mW（DC20V power supply） |
Terminal | Base：distance2.54mm4pin × 2 terminals Resistance：20mΩ Wire gauge：24-20AWG 1mm² Stripping wire length：11mm （suggest to connect with Φ0.5mmtwisted pair cooper cable） |
Connection | Φ6.0mmtube connection |
Offer PF32-05MOD Differential Pressure Switch by China PF32-05MOD Differential Pressure Switch manufacturers. Provide professional after-sales service and guidance - NINGBO NEU-MASTER PNEUMATIC CO.,TLD.
