PF706 Pressure Switch (1-50 bar)
NEU-MASTER
PF-706
| Availability: | |
|---|---|
PF706 Pressure Switch (1-50 bar)
Product Details
Diapragm type perssure switch with DIN43650-A Hirchmann connection, brass dody and 80bar of maximum safety pressure
Specification:
Body | Brass |
Contact | silver cadmium alloy, can be gold plated |
Max voltage | 42V |
Max currency | 4A |
Working temperature range | -40℃--+100℃(baesd on different diaphragm) |
Life endurance | 1000000 |
Electrical life endurance | 100000 |
Pollution situation | normal |
IP level | IP00(without cover) |
Applicabel rule | EN 60730-1 |
Max working pressure | 40bar |
Burst pressure | 80bar |
Weight | ~140gr |

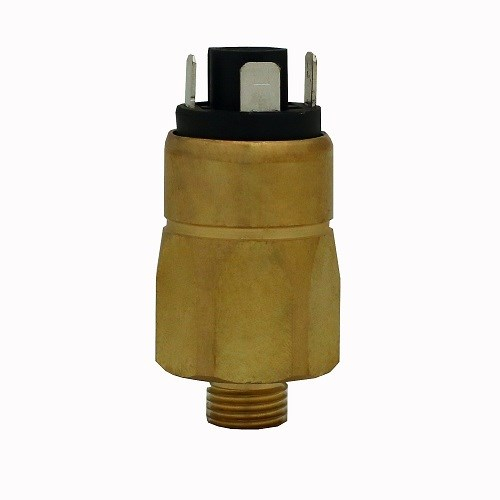

PF706A Pressure Switch (1-50 bar)
Diapragm type perssure switch with 6.4mm plug terminal,brass dody and 80bar of maximum safety pressure
Body | Brass |
Contact | silver cadmium alloy, can be gold plated |
Max voltage | 42V |
Max currency | 4A |
Working temperature range | -40℃--+100℃(baesd on different diaphragm) |
Life endurance | 1000000 |
Electrical life endurance | 100000 |
Pollution situation | normal |
IP level | IP00(without cover) |
Applicabel rule | EN 60730-1 |
Max working pressure | 40bar |
Burst pressure | 80bar |
Weight | ~105gr |
