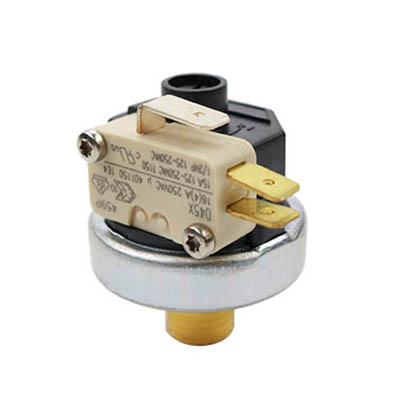

PF25 Pressure Switch (2.9-130 PSI) for Water Steam Air
NEU-MASTER
PF-25
| Availability: | |
|---|---|
PF25 Steam Pressure Switch (2.9-130 PSI) for Water Steam Air
Product Details
PF25 Steam pressure switch is designed for control pressure with higher current capacity. It is widely used in steam cleaner, steam sadiron and other pressure control system.
It provides SPST or SPDT contact form and switch deadband (also referred to as mechanical differential or hysteresis).
PF25 switch utilize high-quality miniature snap-action switches. The switch is diaphragm operated. Diaphragm material can be selected for the operating medium, temperature range and other parameters.
During the development of a specification, actuation point can be adjusted by the designer. In production, factory setting is required.
Specification:
Model | PF25 Steam Pressure Switch ,hot water ,air | |||||
Medium | Non hazardous gas, liquid or steam | |||||
Operating Pressure | 0.2-0.6 bar | 0.5-1.5Bar | 1.2-2.5bar | 1.5-4bar | ||
Proof Pressure | 3bar | 4bar | 5bar | 6bar | ||
Differential | 0.2±0.1bar | 0.2±0.1bar | 0.2±0.1bar | 0.25±0.15bar | ||
Operating Temperature Range | +85℃/ +125℃Maximum | |||||
Contact Arrangement | SPST or SPDT | |||||
Electric Rating | SPST or SPDT/ Normal Close: 16(4) A-250VAC; Other ratings are available on request | |||||
Terminals | 6.35 or 4.88mmmale Q.C. ; Insulation cover available as necessary | |||||
Connection | NPT 1/8-27 or NPT1/4-18 male, G1/8 male | |||||
Offer PF25 Pressure Switch (2.9-130 PSI) for Water Steam Air by China PF25 Pressure Switch (2.9-130 PSI) for Water Steam Air manufacturers. Provide professional after-sales service and guidance - NINGBO NEU-MASTER PNEUMATIC CO.,TLD.
Steam pressure switch, air pressure switch, water pressure switch, pressure switch supplier, High Pressure switch
