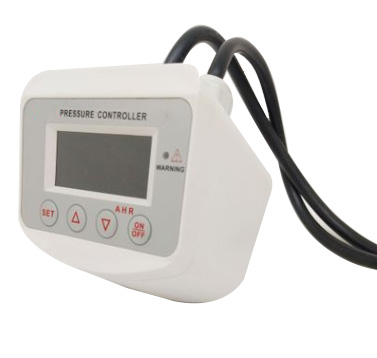

PFDS630 Intelligent Pressure Controller
NEU-MASTER
PFDS630 Intelligent Pressure Controller
| Availability: | |
|---|---|
PFDS630 Intelligent Pressure Controller
Product Details
PFDS630（630/631/632）series is made by high-reliability sensor to measure pressure.
After disposed by back-end circuit, the signal shows on displayer and automatically control relay output when pressure changes.
With design of engineering plastic shell and high-contrast LCD displayer, this series product can be used in various industrial fields.
Kinds of connection types can meet different installation requirements.
User can adjust parametersfreely, with variety of settings built-in, it’s flexible and convenient.
PFDS63（630/631/632）series is with features of anti-vibration, long lifetime, easy operation, high stability and clear display.
Specification:
Item\Model | PFDS630 | PFDS631 | PFDS632 |
Pressure range | (-101.3~10kPa) | (0-1.0~10MPa) | (0~2MPa) |
Proof pressure | 1.5times | 2times | |
Medium | Air,noncorrosive gas and oil,water | ||
Rated working voltage | 220VAC | ||
Power consumption | 1.3W(No Load) | ||
Load | 200VAC 10A(Max) | ||
IP Class | IP52 | ||
Connection | G1/4,NPT1/4,R1/4 | ||
Accuracy | ±1%F.S | ||
Storage temperature | -10~60℃ | ||
Operation temperature | 10~50℃ | ||
Dimension | 80x88x110mm(with connection) | ||
Conversion:1kgf/cm²=14.2psi 1bar=14.5psi
Offer PFDS630 Intelligent Pressure Controller by China PFDS630 Intelligent Pressure Controller manufacturers. Provide professional after-sales service and guidance - NINGBO NEU-MASTER PNEUMATIC CO.,TLD.
Pressure controller, air pressure switch, water pressure switch, pressure switch supplier, High Pressure switch
