PF701 Extended Duty Hot Tub Pressure Switch (0.5-150 PSI)
NEU-MASTER
PF-701
| Availability: | |
|---|---|

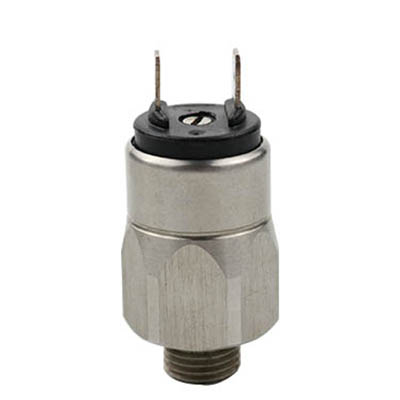

PF701 High Pressure Switch (1-50 bar)
Product Details
Diapragm type perssure switch with DIN72585 A1-2.1 aerial connection and 300bar of maximum safety pressure
Specification:
PF701 High Pressure Switch Parameter:
Body | Zinc-plated Steel/Stainless Steel |
Contact | silver cadmium alloy, can be gold plated |
Max voltage | 42V |
Max currency | 4A |
Working temperature range | -40℃--+100℃(baesd on different diaphragm) |
Life endurance | 1000000 |
Electrical life endurance | 100000 |
Pollution situation | normal |
IP level | IP67 |
Applicabel rule | EN 60730-1 |
Max working pressure | 150bar |
Max safe pressure | 300bar |
Weight | ~85gr |
PF701A High Pressure Switch Parameter:
Diapragm type perssure switch with M3 screw terminal and 300bar of maximum safety pressure.
Body | Zinc-plated Steel/Stainless Steel |
Contact | silver cadmium alloy, can be gold plated |
Max voltage | 42V |
Max currency | 4A |
Working temperature range | -40℃--+100℃(baesd on different diaphragm) |
Life endurance | 1000000 |
Electrical life endurance | 100000 |
Pollution situation | normal |
IP level | IP00(without cover) |
With cover | IP54(rubber cover) |
With cover | IP67(potting resin cover) |
Applicabel rule | EN 60730-1 |
Max working pressure | 150bar |
Burst pressure | 300bar |
Weight | ~85gr |
PF701B High Pressure Switch Parameter:
Diapragm type perssure switch with M3 screw terminal and 300bar of maximum safety pressure.
Body | Zinc-plated Steel/Stainless Steel |
Contact | silver cadmium alloy, can be gold plated |
Max voltage | 42V |
Max currency | 4A |
Working temperature range | -40℃--+100℃(baesd on different diaphragm) |
Life endurance | 1000000 |
Electrical life endurance | 100000 |
Pollution situation | normal |
IP level | IP00(without cover) |
With cover | IP54(rubber cover) |
With cover | IP67(potting resin cover) |
Applicabel rule | EN 60730-1 |
Max working pressure | 150bar |
Burst pressure | 300bar |
Weight | ~85gr |
Offer PF701 High Pressure Switch (1-50 bar) by China LF701 High Pressure Switch (1-50 bar) manufacturers. Provide professional after-sales service and guidance - NINGBO NEU-MASTER PNEUMATIC CO.,TLD.
