PF-08V Vacuum Pressure Switch
NEU-MASTER
PF-08V
| Availability: | |
|---|---|

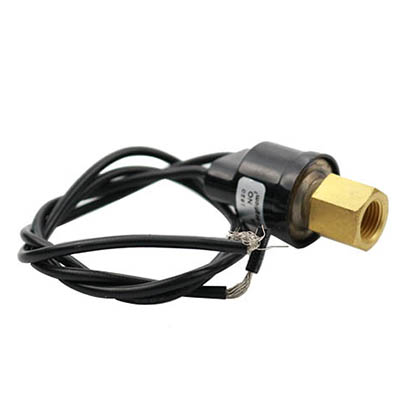

PF08-V Vacuum Pressure Switch -0.85 Bar To 1.5 Bar
Product Details
LF08-V vacuum switch is automatic reset pressure switch designed, there is deadband between close and open pressure setpiont. It can be used for vacuum pressure controlling for vacuum tank, refrigerating equipment or room cooler units or remote outdoor condensing units for domestic cooling systems.
Typical Applications:
Safety controls / air conditioning / refrigeration / vacuum tank pressure control/ braking system of automobile
Specification:
| Series No. | PF08V VACUUM SWITCH |
| Medium | Air, Water, motor oils, transmission oils, Hydrocarbon Media, Refrigeration fluid |
| Pressure Set Point | actuation from 0.2 to 45 Bar |
| Proof Pressure | 10 Bar |
| Burst Pressure | 100 Bar |
| Operating Temperature Range | -30° C to ~ 80° C |
| Switch Type | SPST- NC, SPST-NO |
| Electric Rating | 120/240VAC, 3A 5~28VDC, 6A |
| Dielectric Strength | 750 Vrms across open contacts 1550 Vrms terminals to fitting |
| Terminals | 1/4” blade, wire lead |
| Life at Related Load | 100,000 cycles |
| Connection | 1/8NPT, G1/8", 1/4NPT, G1/4", 7/16-20 UNF, etc. |
| Options | various connector thread sizes; wire leads (potted & sealed); protective cover |
Offer PF08-V Vacuum Pressure Switch -0.85 Bar To 1.5 Bar by China PF08-V Vacuum Pressure Switch -0.85 Bar To 1.5 Bar manufacturers. Provide professional after-sales service and guidance - NINGBO NEU-MASTER PNEUMATIC CO.,TLD.
