PF-08
NEU-MASTER
PF-08
| Availability: | |
|---|---|

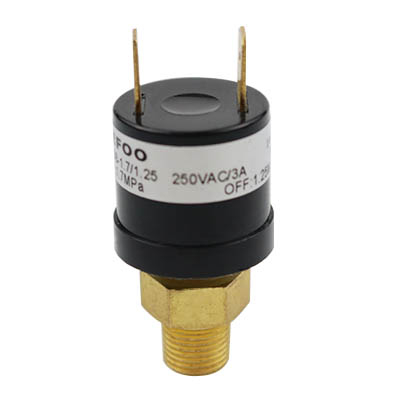

PF08 Pressure Switch (0.2-45bar)
Product Details
The LF08 switches are fixed set point, factory calibrated pressure switches.
It is automatic reset, and can be Normally open or normally close contacts.
All metallic wetted components make the LF08 switch compatible with a multitude of chemicals in liquid or gas form.
It is offered numerous types of electrical terminations from different size and style push on terminals to wire leads with an array of standard industry connectors.
In house machining capabilities allows Neu-Master to offer a wide variety of pressure fitting from different thread types and sizes to units with internal deflator and cupper tubbing for sawing operations.
Typical application:
Air conditioning units (residential, commercial and automotive)
Refrigeration
CO2 Air conditioning, CO2 Refrigeration
Heat Pumps
High pressure cut off ,Low pressure cut off
Air brakes (trucks and commercial equipment)
Fuel pressure monitoring
Engine controls
Agricultural equipment
Industrial controls
Marine engine / equipment.
Specification:
| Series No. | PF08 |
| Medium | Air, Water, motor oils, transmission oils, Hydrocarbon Media, Refrigeration fluid |
| Pressure Set Point | actuation from 0.2 to 45 Bar |
| Proof Pressure | 45 Bar |
| Burst Pressure | 100 Bar |
| Operating Temperature Range | -30° C to ~ 80° C |
| Switch Type | SPST- NC, SPST-NO Auto reset and Manual reset |
| Electric Rating | 120/240VAC, 375VA 120VAC,5.8FLA-34.8LRA;240VAC,2.9FLA-15LRA 24VAC/DC, 2A |
| Dielectric Strength | 750 Vrms across open contacts 1550 Vrms terminals to fitting |
| Terminals | 1/4” blade, wire lead |
| Life at Related Load | 100,000 cycles |
| Connection | 1/8NPT, G1/8", 1/4NPT, G1/4", 7/16-20 UNF, etc. |
| Options | various connector thread sizes; wire leads (potted & sealed); protective cover |
| Approval | UL, CUL |
