Technical data
Working Pressure:Safety factor 4 to 1
Temperature Range:-40℃ to+60℃(-40°Fto+140°F)
Tube1.D:6.5 to 11mm:1/4'to1/2'
Features
1.40%lighter than rubber & conventional pvc hoses
2.Very lightweight and flexible,helps to cut down on
Work-related injuries
3.U.V.And weather resistant.
4.Excellent cold weather flexibility,even in the sub-zero
Temp-40℃ to+60℃(-40°F to+140°F)
5.Good flex fatigue and resilience characteristics
6.High abrasion-resistance
7.Silicon-tree
8.Rohs (15) compliant
Applications
1.For use with pneumatic air tools such as roofing nailers,sanders,chippers,
impact wrenches,screwdrivers and staplers
2.Standard hose sizes have been designed with commercially available fitting
suitable for pneumatic and air fluid transfer application
3.Construction sites
4.Automotive repair and maintenance shops
Order information
Example:UBSA651010BU

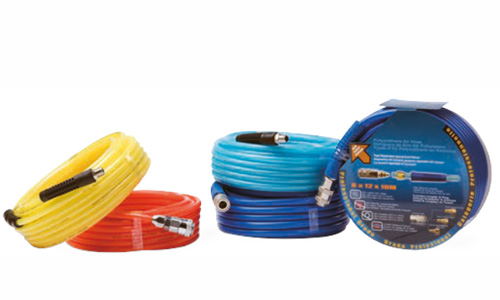

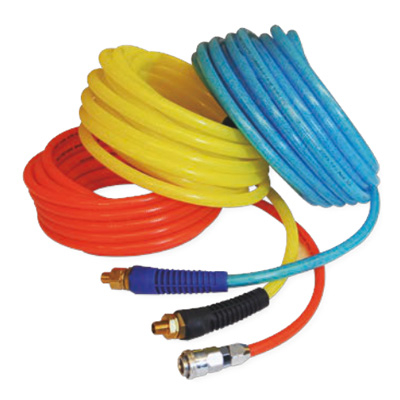

UBSA651010BU-Reinforced polyurethane air hose
UBSA651010BU-Tube O.D.6.5mm
UBSA651010BU-Tubel.D.1.0mm
UBSA651010BU-Hose length 10m
UBSA6510100BU-Color(Blue)
Color code
•BU | Blue | •TY | Transparent Yellow |
•OR | Orange | •TBU | Transparent Blue |
•R | Red |
Metric size
Part Number | Hose I.D. (mm) | Hose O.D. (mm) | MAX.Working Pressure AT 23℃（bar） | MIN.Burst Pressure AT 23℃（bar） | Package length （M） | |
UBSA6510 | 6.5 | 10.0 | 15 | 60 | 10,15,20,30 | |
UBSA8012 | 8.0 | 12.0 | 15 | 60 | 10,15,20,30 | |
UBSA85125 | 8.5 | 12.5 | 15 | 60 | 10,15,20,30 | |
UBSA1015 | 10.0 | 15.0 | 15 | 60 | 10,15,20,30 | |
UBSA1116 | 11.0 | 16.0 | 15 | 60 | 10,15,20,30 | |
Imperial size
Part Number | Hose I.D. (inch) | Hose O.D. (inch) | MAX.Working Pressure AT 73°F（psi） | MIN.Burst Pressure AT 73°F（psi） | Package length （ft） | |
UBSA14375 | 1/4 | 0.375 | 200 | 800 | 25,50,100 | |
UBSA516472 | 5/16 | 0.472 | 200 | 800 | 25,50,100 | |
UBSA38562 | 3/8 | 0.562 | 200 | 800 | 25,50,100 | |
UBSA12732 | 1/2 | 0.73 | 200 | 800 | 25,50,100 | |
Note: Other hardness, sizes and colors available on request.
Please contact us for detailed ordering information.
