Applications
1.Robotic welding
2. High temperature environments
3.Transfer of air and water lubrication
4. Pneumatic air lines
5.Automotive assembly
6.Silicon-free
Technical data
Working Pressure:Safety factor 3 to 1
Temperature Range:-20°℃ to +60°℃(-4°F to+140°F)
Metric size
Part Number | Tube O.D. (mm) | Tube I.D. (mm) | MAX.Working Pressure AT 23℃(bar) | Coil I.D.(mm) | Tube Length(meter) |
CUWS8050 | 8 | 5 | 13 | 38 | 4,8,12,15 |
CUWS1065 | 10 | 6.5 | 11 | 51 | 4,8,12,15 |
CUWS1280 | 12 | 8 | 10 | 60 | 4,8,12,15 |
Imperial size
Part Number | Tube O.D. (inch) | Tube I.D. (inch) | MAX.Working Pressure AT 73°F(psi) | Coil I.D.(inch) | Tube Length(ft) |
CUWS14160 | 1/4 | 0.160 | 148 | 1-1/2 | 15,25,30,50 |
CUWS38245 | 3/8 | 0.245 | 147 | 2 | 15,25,30,50 |
CUWS12320 | 1/2 | 0.320 | 140 | 2-1/2 | 15,25,30,50 |
Note: Other both end of tail length available on request.
Pleaie contact us for detailed ordering information.
Features
1. Highly abrasion-resistant alloy jacket
2.Smooth,non-marking pin-pricked cover
3.Good flexibility over a wide temperature range
4. Good fitting retention at elevated temperatures
5. Lighter than rubber hoses and easy to substitute
6.Silicon-free
Order information

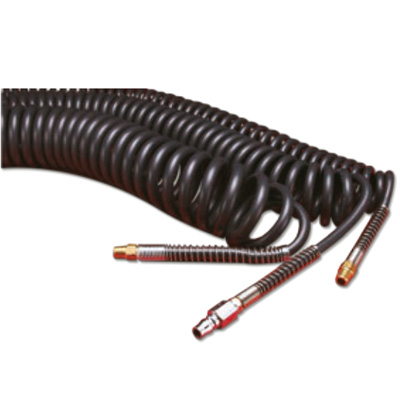

CUWS80508MBU-a - Coiled anti-spark dual layer air hose
CUWS80508MBU-a-Tube O.D.8.0mm
CUWS80508MBU-a-Tube l.D.5.0mm
CUWS80508MBU-a -Material length 8m
CUWS80508MBU-a -Color(Blue)
CUWS80508MBU-a-Tail Style a
Color code
•BU | Blue | •Y | Yellow |
•GY | Grey | ||
•R | Red |

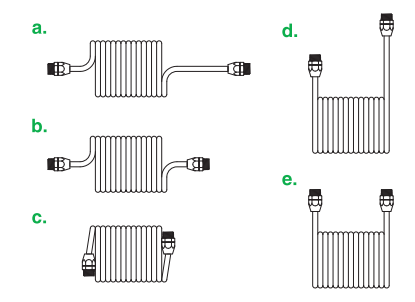

Tail style choice

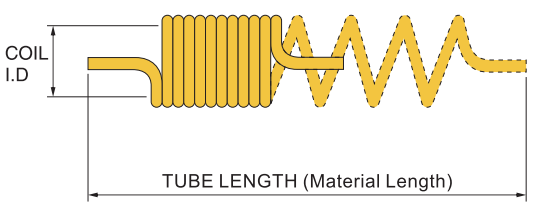

Dimensions for coiled tubing
Note: Other both end of tail length available on request.
Pleaie contact us for detailed ordering information.

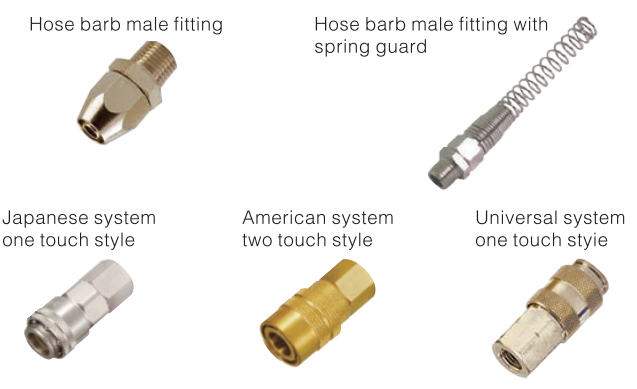

Suitable assembly fittings & couplers
Note:
1.Strongly suggest fitting or quick coupler assemblies are permanently attached to the
hose at the factory,resulting in the most durable fitting system available.
2. For selection of coupler please refer to the catalog of coupler. plug.fitting.
