Applications
1. General pneumatics
2. Process lines for chemicals and oils
3. Vacuum industry
4. Factory production lines
5. Industrial Machinery
Technical data
Working Pressure:Safety factor 3 to 1
Temperature Range:-40℃ to +80°℃(-40°F to +176°F)
Tube O.D:6 to 15mm;1/4"to 5/8"
Metric size
Part Number | Tube O.D. (mm) | Tube I.D. (mm) | MAX.Working Pressure AT 23℃(bar) | MIN.Burst Pressure AT 23℃(bar) | Coil I.D.(mm) | Tube Length(meter) |
CN66040 | 6 | 4 | 27 | 81 | 60 | 2.5,5,7.5 |
CN68060 | 8 | 6 | 19 | 57 | 76 | 2.5,5,7.5,12,15 |
CN61075 | 10 | 7.5 | 15 | 45 | 76 | 5,7.5,12,15 |
CN61290 | 12 | 9 | 19 | 57 | 76 | 5,7.5,12,15 |
CN61512 | 15 | 12 | 15 | 45 | 160 | 5,7.5,12,15 |
Imperial size
Part Number | Tube O.D. (inch) | Tube I.D. (inch) | MAX.Working Pressure AT 73°F(psi) | MIN.Burst Pressure AT 73°F(bar) | Coil I.D.(inch) | Tube Length(ft) |
CN614170 | 1/4 | 0.170 | 360 | 1100 | 2 | 12,25,50 |
CN6516232 | 5/16 | 0.232 | 330 | 990 | 3 | 12,25,50 |
CN6516250 | 5/16 | 0.250 | 220 | 660 | 3 | 12,25,50 |
CN638250 | 3/8 | 0.250 | 330 | 990 | 3 | 12,25,50 |
CN638275 | 3/8 | 0.275 | 300 | 900 | 3 | 12,25,50 |
CN612375 | 1/2 | 0.375 | 330 | 990 | 3 | 12,25,50 |
CN658500 | 5/8 | 0.500 | 330 | 990 | 6-1/4 | 12,25,50 |
Note: Other both end of tail length available on request.
Pleaie contact us for detailed ordering information.
Features
1.High tensile strength and rigidity
2. Excellent chemical resistance
3.Excellent abrasion resistance
4. Good resistance to high ambient temperature
5.Excellent elastic memory
6.Silicon-free
Order information
Example: CN6806025MBU-c

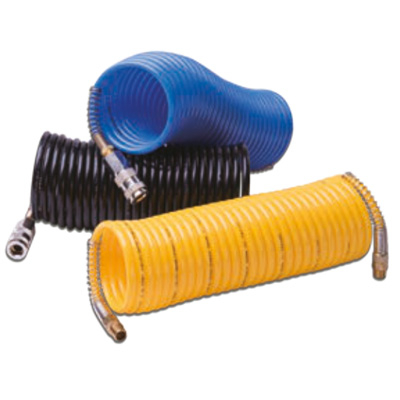

CN6806025MBU-c-Coiled nylon 6 air hose
CN6806025MBU-c-Tube O.D.8.0mm
CN6806025MBU-c-Tubel.D.6.0mm
CN6806025MBU-c-Material length 2.5m
CN6806025MBU-c-Color(Blue)
CN6806025MBU-c-Tail style a
Color code
•BU | Blue | •R | Red |
•BK | Black | •Y | Yellow |
•G | Green |
Tail style choice

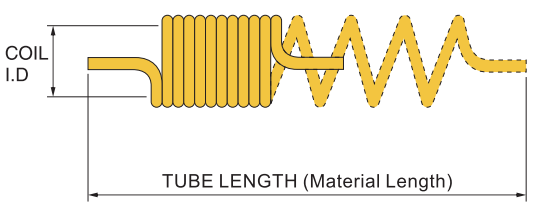

Dimensions for coiled tubing
Note: Other both end of tail length available on request.
Pleaie contact us for detailed ordering information.

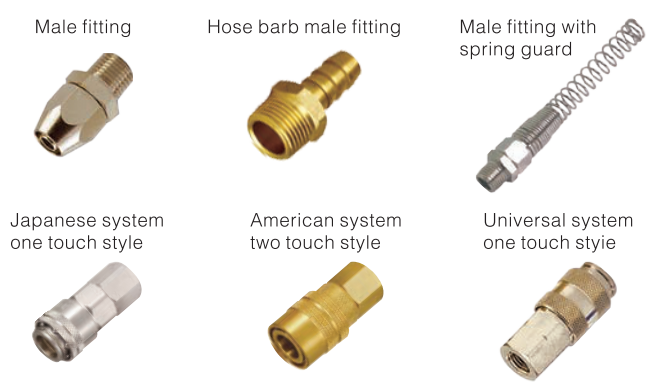

Suitable assembly fittings & couplers
