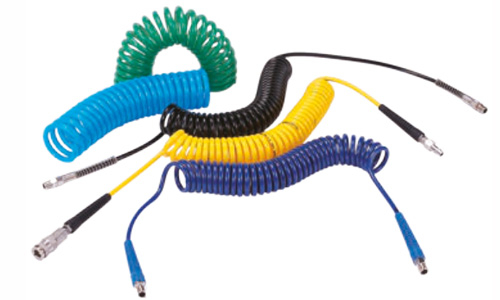

Technical data
Working Pressure: Safety factor 3 to 1
Temperature Range:-20°℃ to+60°℃(-4°F to +140°F)
Working Length:50% to 80% of tube length
Metric size
Part Number | Tube O.D. (mm) | Tube I.D. (mm) | MAX.Working Pressure AT 23℃(bar) | MIN.Burst Pressure AT 23℃(bar) | Coil I.D.(mm) | Tube Length(meter) |
CUS6040 | 6 | 4 | 11 | 33 | 22 | 5,8,12,15 |
CUS8050 | 8 | 5 | 12 | 36 | 22 or 35 | 5,8,12,15 |
CUS1065 | 10 | 6.5 | 11 | 33 | 50 | 5,8,12,15 |
CUS1280 | 12 | 8 | 10 | 30 | 60 | 5,8,12,15 |
Imperial size
Part Number | Tube O.D. (inch) | Tube I.D. (inch) | MAX.Working Pressure AT 73°F(psi) | MIN.Burst Pressure AT 73°F(bar) | Coil I.D.(inch) | Tube Length(ft) |
CUS14160 | 1/4 | 0.160 | 142 | 430 | 1.0 | 15,25,30,50 |
CUS38250 | 3/8 | 0.250 | 132 | 396 | 1 or 1-1/2 | 15,25,30,50 |
CUS916375 | 9/16 | 0.375 | 130 | 390 | 2.0 | 15,25,30,50 |
Note: Other both end of tail length available on request.
Pleaie contact us for detailed ordering information.
Applications
1.Pneumatic equipment
2.Automobile repair
3.Instrumentation lines
4.Production line air tools
5.Robotics
6.Industrial machinery
Features
1.Easy and safe operation
2.Excellent coil memory
3.100% kink proof and abrasion resistance
4. Small coil diameter
5. Longevity of life
6.Silicon-free
Order information
Example: CUS80505MBU-a
CUS80505MBU-a-Coiled polyurethane tubing
CUS80505MBU-a -Tube O.D.8.0nmm
CUS80505MBU-a-Tube l.D.5.0mm
CUS80505MBU-a - Tube length 5m
CUS80505MBU-a -Color(Blue)
CUS80505MBU-a- Tail style a
Color code
•BU | Blue | •Y | Yellow |
•OR | Orange | •TBU | Transparent Blue |
•R | Red |
Tail style choice
Dimensions for coiled tubing
Note: Other both end of tail length available on request.
Pleaie contact us for detailed ordering information.

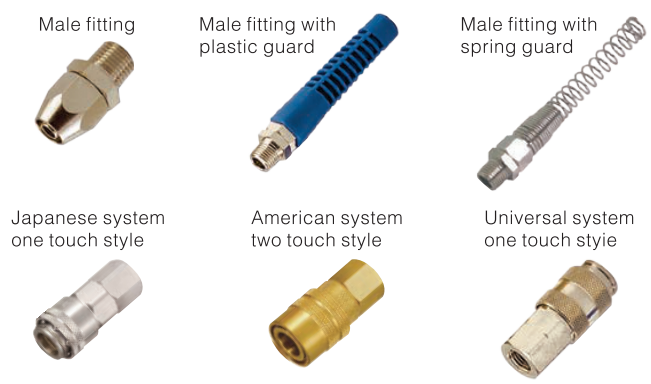

Suitable assembly fittings & couplers
Note:
Coiled polyurethane tubing can be connected to various fittings or quick couplers.
Technical data
Working Pressure: Safety factor 3 to 1
Temperature Range:-20°℃ to+60°℃(-4°F to +140°F)
Working Length:50% to 80% of tube length
Metric size
Part Number | Tube O.D. (mm) | Tube I.D. (mm) | MAX.Working Pressure AT 23℃(bar) | MIN.Burst Pressure AT 23℃(bar) | Coil I.D.(mm) | Tube Length(meter) |
CUS6040 | 6 | 4 | 11 | 33 | 22 | 5,8,12,15 |
CUS8050 | 8 | 5 | 12 | 36 | 22 or 35 | 5,8,12,15 |
CUS1065 | 10 | 6.5 | 11 | 33 | 50 | 5,8,12,15 |
CUS1280 | 12 | 8 | 10 | 30 | 60 | 5,8,12,15 |
Imperial size
Part Number | Tube O.D. (inch) | Tube I.D. (inch) | MAX.Working Pressure AT 73°F(psi) | MIN.Burst Pressure AT 73°F(bar) | Coil I.D.(inch) | Tube Length(ft) |
CUS14160 | 1/4 | 0.160 | 142 | 430 | 1.0 | 15,25,30,50 |
CUS38250 | 3/8 | 0.250 | 132 | 396 | 1 or 1-1/2 | 15,25,30,50 |
CUS916375 | 9/16 | 0.375 | 130 | 390 | 2.0 | 15,25,30,50 |
Note: Other both end of tail length available on request.
Pleaie contact us for detailed ordering information.
Applications
1.Pneumatic equipment
2.Automobile repair
3.Instrumentation lines
4.Production line air tools
5.Robotics
6.Industrial machinery
Features
1.Easy and safe operation
2.Excellent coil memory
3.100% kink proof and abrasion resistance
4. Small coil diameter
5. Longevity of life
6.Silicon-free
Order information
Example: CUS80505MBU-a
CUS80505MBU-a-Coiled polyurethane tubing
CUS80505MBU-a -Tube O.D.8.0nmm
CUS80505MBU-a-Tube l.D.5.0mm
CUS80505MBU-a - Tube length 5m
CUS80505MBU-a -Color(Blue)
CUS80505MBU-a- Tail style a
Color code
•BU | Blue | •Y | Yellow |
•OR | Orange | •TBU | Transparent Blue |
•R | Red |
Tail style choice
Dimensions for coiled tubing
Note: Other both end of tail length available on request.
Pleaie contact us for detailed ordering information.
Suitable assembly fittings & couplers
Note:
Coiled polyurethane tubing can be connected to various fittings or quick couplers.
