Technical data
Working Pressure:Safety factor 4 to 1
Temperature Range:-40℃ to+60℃(-40°F to+140°F)
Tube 1.D:6.5 to 11mm:1/4"to 1/2"
Features
1.40% lighter than rubber & conventional PVC hoses
2.Very lightweight and flexible.helps to cut down on work-related injuries
3.U.V.and weather resistant Excellent cold weather flexibility,even in the sub-zero
Temp-40°℃ to +60°℃(-40°F to+140°F)
4.Good flex fatigue and resilience characteristics
5.High abrasion-resistance
6.Silicon-free
7. RoHS (15) compliant
Applications
1. Low level of pressure
2.Pneumatic systems
3. Chemical transfer service
4.Water purification and condition
5. Vending equipment
Order information
Example:UBS6510100BU

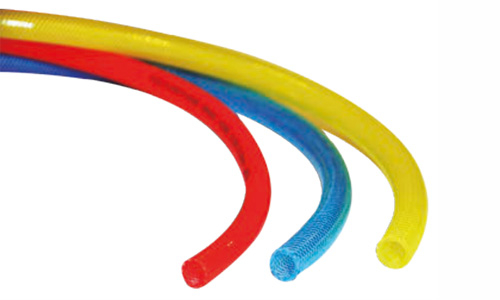

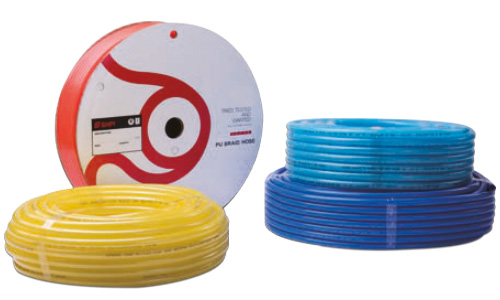

UBS6510100BU-Reinforced polyurethane air hose
UBS6510100BU-Tube O.D.6.5mm
UBS6510100BU-Tube1.D.1.0mm
UBS6510100BU-Hose length 100m
UBS6510100BU-Color(Blue)
Coder information
•BU | Blue | •TY | Transparent Yellow |
•OR | Orange | •R | Red |
•TBU | Transparent Blue |
Metric size
Part Number | Hose I.D. (mm) | Hose O.D. (mm) | MAX.Working Pressure AT 23℃(bar) | MIN.Burst Pressure AT 23℃(bar) | Package length | |
Reel (meter) | Coil (meter) | |||||
UBS6510 | 6.5 | 10.0 | 15 | 60 | 100 | 30 |
UBS8012 | 8.0 | 12.0 | 15 | 60 | 100 | 30 |
UBS85125 | 8.5 | 12.5 | 15 | 60 | 100 | 30 |
UBS1015 | 10.0 | 15.0 | 15 | 60 | 100 | 30 |
UBS1116 | 11.0 | 16.0 | 15 | 60 | 100 | 30 |
Imperial size
Part Number | Hose I.D. (inch) | Hose O.D. (inch) | MAX.Working Pressure AT 73°F(psi) | MIN.Burst Pressure AT 73°F(psi) | Package length | |
Reel (ft) | Coil (ft) | |||||
UBS14375 | 1/4 | 0.375 | 200 | 800 | 300 | 100 |
UBS516472 | 5/16 | 0.472 | 200 | 800 | 300 | 100 |
UBS38562 | 3/8 | 0.562 | 200 | 800 | 300 | 100 |
UBS12732 | 1/2 | 0.732 | 200 | 800 | 300 | 100 |
Note: Other hardness, sizes and colors available on request.
Please contact us for detailed ordering information.
