Applications
1.Air tools
2.Process lines for chemicals and oils
3.Factory production lines
4.Industrial Machinery
Technical data
Working Pressure: Safety factor 3 to 1
Temperature Range:-40℃ to+80℃(-40°F to +176°F)
Tube O.D:6 to 15mm;1/4”to 5/8”
Metric size
Part Number | Tube O.D. (mm) | Tube I.D. (mm) | MAX.Working Pressure AT 23℃(bar) | MIN.Burst Pressure AT 23℃(bar) | Coil I.D.(mm) | Tube Length(meter) |
CN126040 | 6 | 4 | 27 | 81 | 60 | 2.5,5,7.5 |
CN128060 | 8 | 5 | 19 | 57 | 76 | 2.5,5,7.5,12,15 |
CN121075 | 10 | 7.5 | 15 | 45 | 76 | 5,7.5,12,15 |
CN121290 | 12 | 9 | 19 | 57 | 76 | 5,7.5,12,15 |
Imperial size
Part Number | Tube O.D. (inch) | Tube I.D. (inch) | MAX.Working Pressure AT 75°F(psi) | MIN.Burst Pressure AT 75°F(bar) | Coil I.D.(inch) | Tube Length(ft) |
CN1214170 | 1/4 | 0.170 | 360 | 1100 | 2 | 12,25,50 |
CN12516232 | 5/16 | 0.232 | 330 | 990 | 3 | 12,25,50 |
CN12516250 | 5/16 | 0.250 | 220 | 660 | 3 | 12,25,50 |
CN1238250 | 3/8 | 0.250 | 330 | 990 | 3 | 12,25,50 |
CN1238275 | 3/8 | 0.275 | 300 | 900 | 3 | 12,25,50 |
CN1212375 | 1/2 | 0.375 | 330 | 990 | 3 | 12,25,50 |
CN1258500 | 5/8 | 0.500 | 330 | 990 | 6-1/4 | 12,25,50 |
Note: Other both end of tail length available on request.
Pleaie contact us for detailed ordering information.
Features
1.Heat and light-stabilized nylon
2. Excellent chemical resistance
3.Excellent abrasion resistance
4.Exhibits low-level water absorption
5.Silicon-free
Order information
Example: CN12806025MBU-c

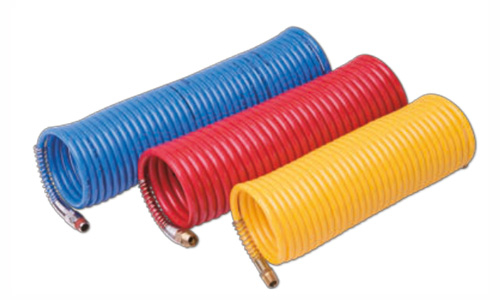

CN12806025MBU-c-Coiled nylon 12 air hose
CN12806025MBU-c-Tube O.D.8.0mm
CN12806025MBU-c-Tube l.D.6.0mm
CN12806025MBU-c-Material length 2.5m
CN12806025MBU-c-Color(Bule)
CN12806025MBU-c-Tail style a
Color code
•BU | Blue | •R | Red |
•BK | Black | •Y | Yellow |
•G | Green | •NA | Natural |
Tail style choice
Dimensions for coiled tubing
Note: Other both end of tail length available on request.
Pleaie contact us for detailed ordering information.

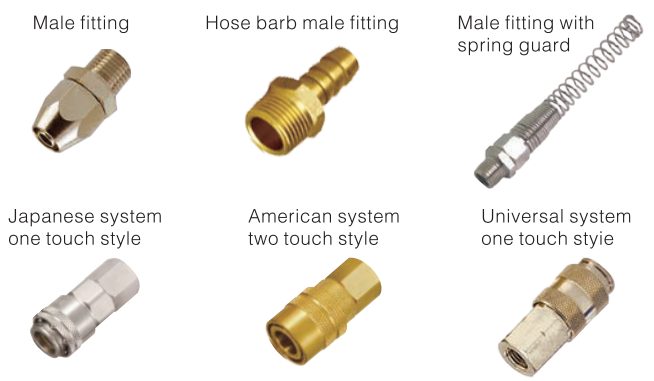

Suitable assembly fittings & couplers
