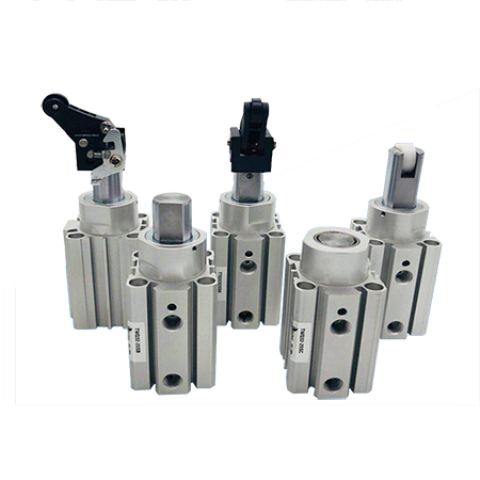

Pneumatic Stopper Cylinder TWQ Series Double Acting/Single Acting Bore Size 20 to 50 Equal To AIRTAC TWQ Stopper Cylinder
Product Feature
Pneumatic stopper cylinder, double acting, bore 20mm-50mm with magnet, shockless stopper (adjustable absorber)
●JIS standard is implemented.
●The installation height is adjustable and several rod end modes can be selected. The stopper cylinder with shock absorber has a
better cushion effect.
●Shockless stopper cylinder is attached with self-lock device, which can prevent the returning of rebound of rocker caused by
bar objects.
●Several series and specifications for stopper cylinders can be selected.
| Catalog: |

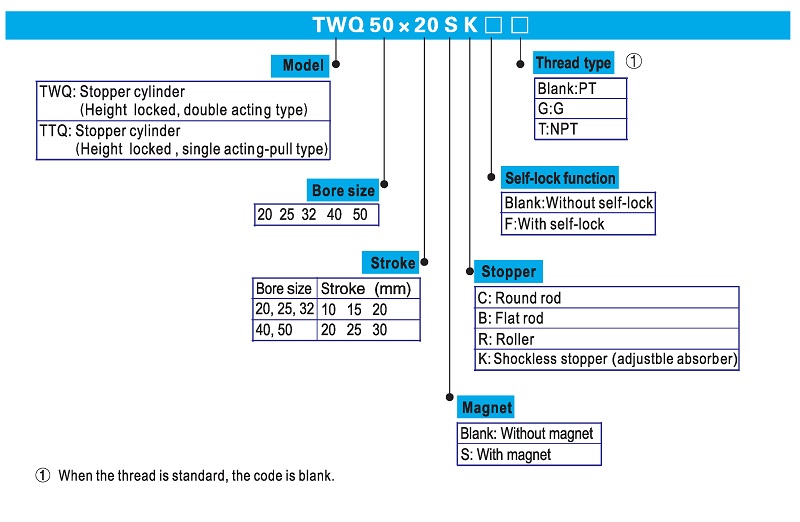

Pneumatic Stopper Cylinder TWQ Series Ordering Code
Pneumatic Stopper Cylinder TWQ Series Specification
| Pneumatic stopper cylinder Bore Size | 20 | 25 | 32 | 40 | 50 | |
| Fluid | Air (To be filtered by 40чm filter element) | |||||
| Action | Double acting type, Single acting-pull type | |||||
Operation Pressure | Double Acting Type | 0.15∽1.0Mpa(23∽145Psi) | ||||
| Single Acting-Pull Type | Φ20: 0.25∽1.0Mpa(35∽145psi) ; Others :0.2∽1.0Mpa(28∽145psi) | |||||
| Proof Pressure | 1.5Mpa(215Psi) | |||||
| Temperature ℃ | -20∽80 | |||||
| Range of stroke tolerance | 0+1.0 | |||||
| Cushion type | Bumper | |||||
| Lubrication | Non Required | |||||
| Mounting Type | Thru hole or screw hole | |||||
| Stopper type | Round rod,Flat rod/Roller | Round rod,Flat rod/Roller;Shock less stopper With absorber | ||||
| Port Size | M5x0.8 | 1/8" | ||||

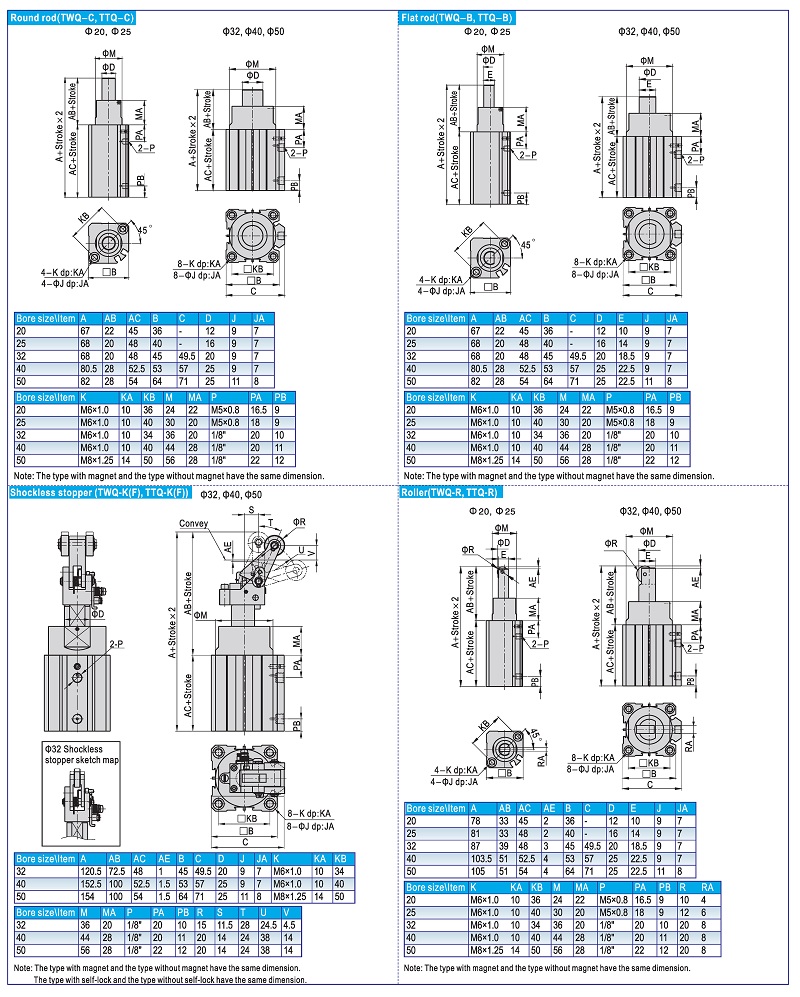

Pneumatic Stopper Cylinder TWQ Series Dimensions
Neu-Master Pneumatic warrants these TWQ Pneumatic Stopper Cylinder to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the TWQ Pneumatic Stopper Cylinder, delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
