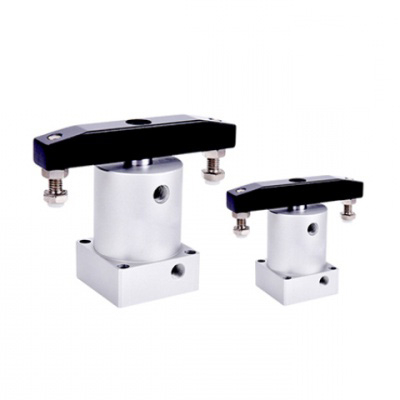

Pneumatic Clamp ACK Series Twist Type Bore Size 25 to 63 Equal To AIRTAC ACK Pneumatic Twist Clamp
Product Feature
The ACK series of twist clamp air cylinders by Neu-Master. These double acting pneumatic actuators are available with single or dual clamp.
Bore sizes range from 25mm to 63mm. Choose from either a 90° or 180° rotary angle, and either a clockwise or counter clockwise rotary direction.
Product Features:
●The material of seals guarantees the reliable performance of the cylinder that is used under various conditions.
●Three-slot guide structure leads to high guide precision.
●There are single and double side clamping fingers can be selected (90 degrees).
●Levorotatory and dextrorotary are available; 90 degress and 180 degrees.
●The material of piston rod is made from special allow steel, which has longer life after heat treatment.
| Catalog: |

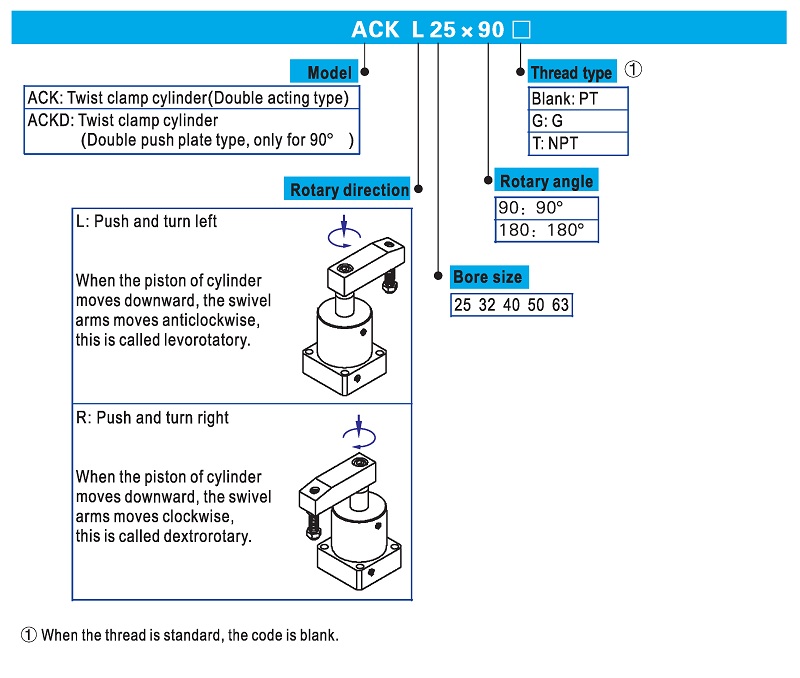

Pneumatic Clamp ACK Series Twist Type Ordering Code
Pneumatic Clamp ACK Specification
| Air Gripper HFY Bore Size | 16 | 20 | 25 | 32 | 63 | ||
| Acting Type | Double Acting | ||||||
| Fluid | Air (To be filtered by 40цm filter element) | ||||||
Operating Pressure | 0.15∽1.0Mpa(22∽145Psi) | ||||||
| Temperature ℃ | -20∽80 | ||||||
| Speed Range mm/s | 50∽200 | ||||||
| Stroke Tolerance | 0+1.0 | ||||||
| Rotary Angle Tolerance | ±1.5° | ||||||
| Cushion Type | No Cushion | ||||||
| Port Size | M5X0.8 | 1/8" | |||||

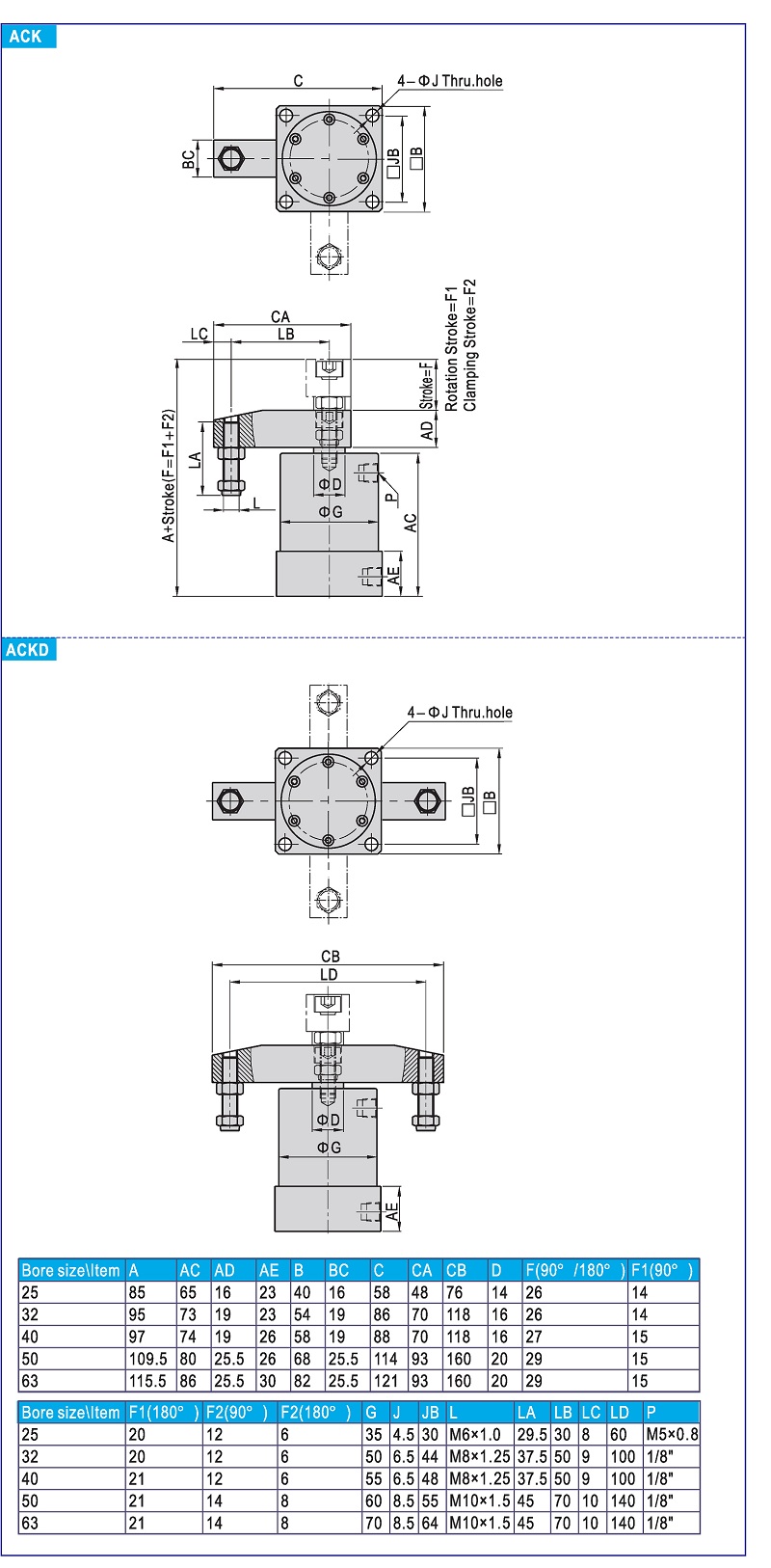

Pneumatic Clamp ACK Series Twist Type Dimension
Pneumatic Clamp ACK Series Twist Type Stroke
| Pneumatic Clamp Bore Size | Stroke Type | 90 | 180 | Total Stroke(90°/180°) |
25 32 | Rotation Stroke | 14 | 20 | 4 |
| Clamping Stroke | 12 | 6 | 4 | |
| 40 | Rotation Stroke | 15 | 21 | 6 |
| Clamping Stroke | 12 | 6 | 8 | |
50 63 | Rotation Stroke | 15 | 21 | 8 |
| Clamping Stroke | 14 | 8 | 12 |
Neu-Master Pneumatic warrants these compact pneumatic cylinders to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Pneumatic Clamp ACK Series Twist Type , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
