Pneumatic Swing Clamp QCK Series Swing Type Bore Size 25 to 63 Equal To AIRTAC QCK Swing Clamp
Product Feature
The QCK series of swing clamp air cylinders by Neu-Master.
Bore sizes range from12mm to 63mm.
Product Features:
●It can be used on welding fixture, the QPQ surface treatment prevent piston rod damage by welding slag; better than chrome plated piston rod.
●The front cover with stainless steel dust scraping ring, can keep the dust and welding slag out, and protect cylinder internal parts.
●Strong magnet is optioned for 32mm to 63mm bore size, which can be used in high magnetic fields.
●The mounting dimension of body is the same as ACQ series. ACQ series accessories can be used.
| Catalog: |

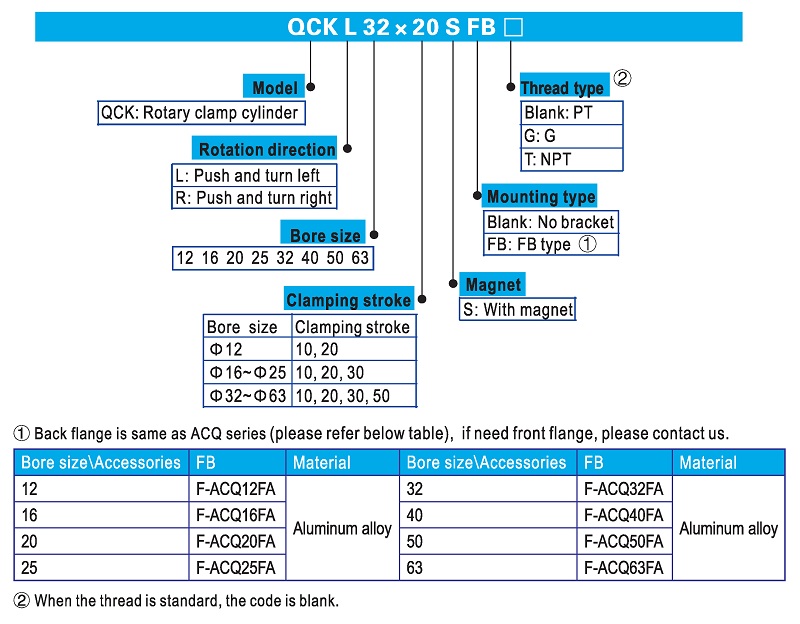

Pneumatic Swing Clamp QCK Series Ordering Code
Pneumatic Swing Clamp QCK Series Specification
| Pneumatic Swing Clamp | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 60 |
| Acting Type | Double Acting | |||||||
| Fluid | Air (To be filtered by 40цm filter element) | |||||||
| Operating Pressure | 0.15∽1.0Mpa(22∽145Psi) | |||||||
| Proof Pressure | 1.5Mpa(215Psi)15Bar | |||||||
| Temperature ℃ | -20∽80 | |||||||
| Speed Range mm/s | 50∽200 | |||||||
| Swing Angle | 90°±10° | |||||||
| Swing Direction | Turn Left or Trun Right | |||||||
| Swing Stroke mm | 7.5 | 9.5 | 15 | 19 | ||||
| Clamping Stroke mm | 10 20 | 10 20 30 | 10 20 30 50 | |||||
| Stroke Tolerance | 0+1.0 | |||||||
| Cushion Type | Bumper | |||||||
| Port Size | M5X0.8 | 1/8" | 1/4" | |||||

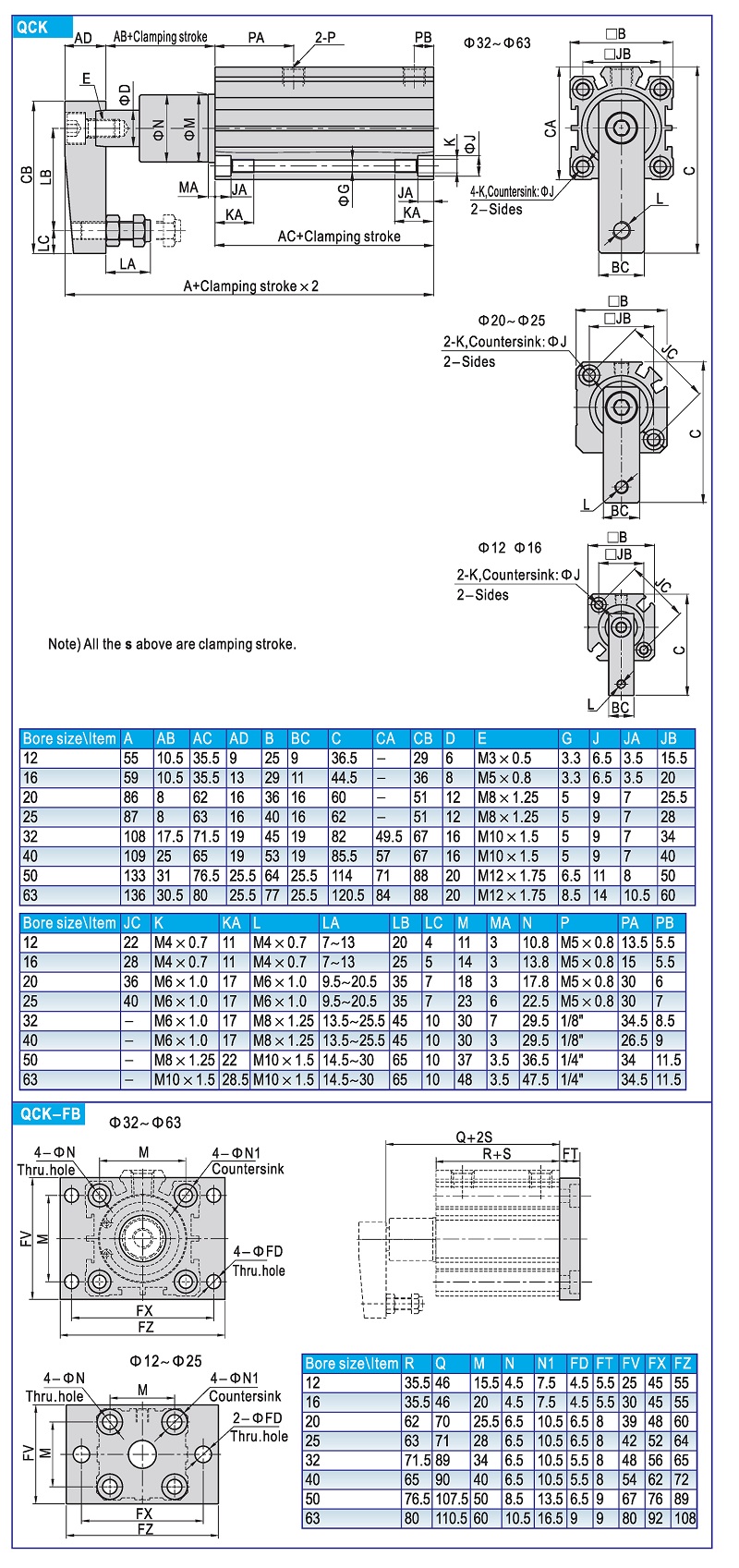

Pneumatic Swing Clamp QCK Series Dimension
