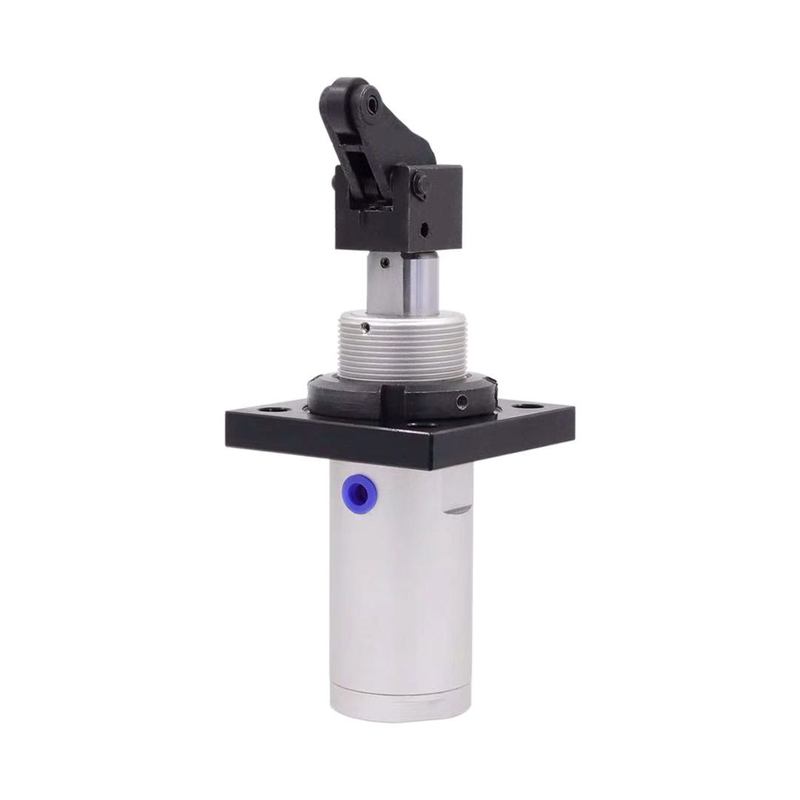

Pneumatic Stopper Cylinder TWG Series Double Acting/Single Acting Bore Size 32 to 50 Equal To AIRTAC TWG Stopper Cylinder
Product Feature
Pneumatic stopper cylinder, double acting, bore 32mm-50mm with magnet, shockless stopper (adjustable absorber)
●Widening the piston rod can effectively improve that impact resistance ability of the cylinder.
●The installation height is adjustable and several rod end modes can be selected.The cushion effect of the stopper cylinder with shock absorber is better.●Shockless stopper cylinder is equipped with selflock device, which can prevent the returning of rebound of rocker caused by bar
objects.
●Several series and specifications for stopper cylinders can be selected.
| Catalog: |
Pneumatic Stopper Cylinder TWG Series Ordering Code
Pneumatic Stopper Cylinder TWG Series Specification
| Pneumatic stopper cylinder Bore Size | 32 | 40 | 50 | |
| Fluid | Air (To be filtered by 40чm filter element) | |||
| Action | Double acting type, Single acting-pull type | |||
Operation Pressure | Double Acting Type | 0.15∽1.0Mpa(23∽145Psi) | ||
| Single Acting-Pull Type | 0.2∽1.0Mpa(28∽145psi) | |||
| Proof Pressure | 1.5Mpa(215Psi) | |||
| Temperature ℃ | -20∽80 | |||
| Range of stroke tolerance | 0+1.0 | |||
| Cushion type | Bumper | |||
| Lubrication | Non Required | |||
| Mounting Type | Flange (The mounting high can be changed) | |||
| Stopper type | Round rod,Flat rod,Roller shock less stopper (With absorber) | |||
| Port Size | 1/8" | |||
Pneumatic Stopper Cylinder TWG Series Dimensions
Neu-Master Pneumatic warrants these Pneumatic Stopper Cylinder TWG Series to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Pneumatic Stopper Cylinder TWG Series, delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
