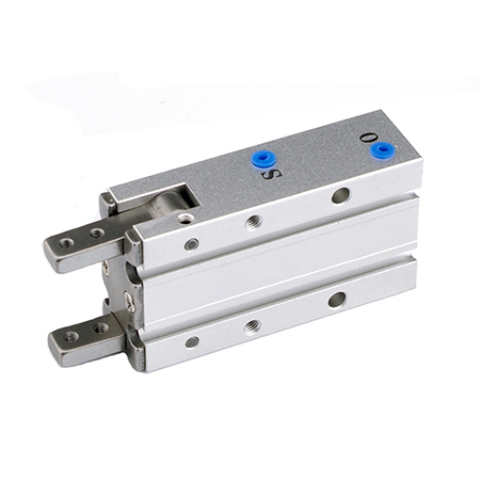

Pneumatic Parallel Gripper HFP Series High Precision Double Acting Single Acting Equal To AIRTAC HFP Pneumatic Gripper
Product Feature
●A structure of lever type gripping is designed to reduce the cost under the premise of accuracy.
●A sheet metal is installed between the finger and body to reduce abrasion and extend the service life.
●The contact area between finger and body is enlarged to reduce shading and enhance the gripping accuracy.
●The finger clamps when the piston rod pushes out and stretches when the piston rod retracts. The gripping force is 20%-30% greater than the tensile force.
●Can be mounted from three directions.
●Magnet is included in the standard configuration.
| Catalog: |

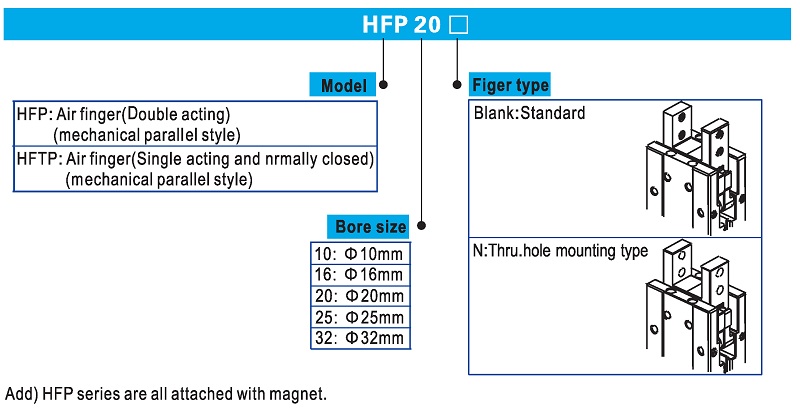

Pneumatic Parallel Gripper HFP Series Ordering Code
Pneumatic Parallel Gripper HFP Series Specification
| Pneumatic Gripper HFP Bore Size | 10 | 16 | 20 | 25 | 32 | ||
| Acting Type | Double Acting Single Acting | ||||||
| Fluid | Air (To be filtered by 40цm filter element) | ||||||
Operating Pressure | Double Acting | Φ6,Φ10 | 0.2∽0.7Mpa(28∽100Psi)2.0∽7.0Bar | ||||
| Others | 0.15∽0.7Mpa(22∽100Psi)1.5∽7.0Bar | ||||||
| Single Acting | Φ6,Φ10 | 0.35∽0.7Mpa(50∽100Psi)3.5∽7.0Bar | |||||
| Others | 0.25∽0.7Mpa(36∽100Psi)2.5∽7.0Bar | ||||||
| Proof Pressure | 1.05Mpa(150Psi)(10.5Bar) | ||||||
| Temperature ℃ | -10∽70 | ||||||
| Lubrication | Cylinder: Not Required ; Gripper Jaws:Lubricate grease | ||||||
| Repeatability mm | ±0.01 | ||||||
| Max.gripping length mm | 30 | 40 | 60 | 70 | 90 | ||
| Max. Frequency | 180(c.p.m) | ||||||
| Sensor Switch | -- | CS1-G DS1-G | CS1-G / DS1-G DS1-H | ||||
| Port Size | M3x0.5 | M5*0.8 | |||||

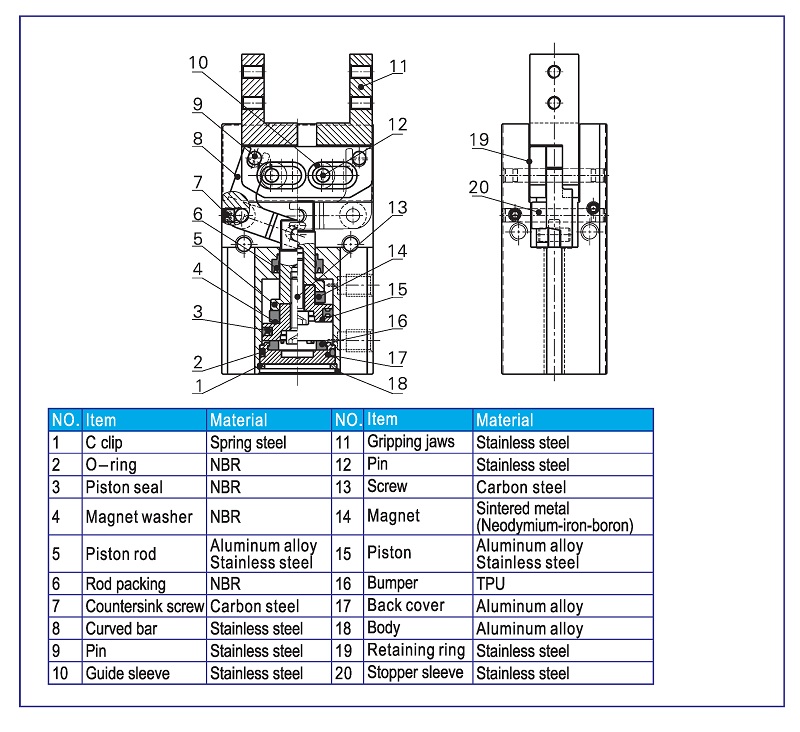

Pneumatic Parallel Gripper HFP Series Structure

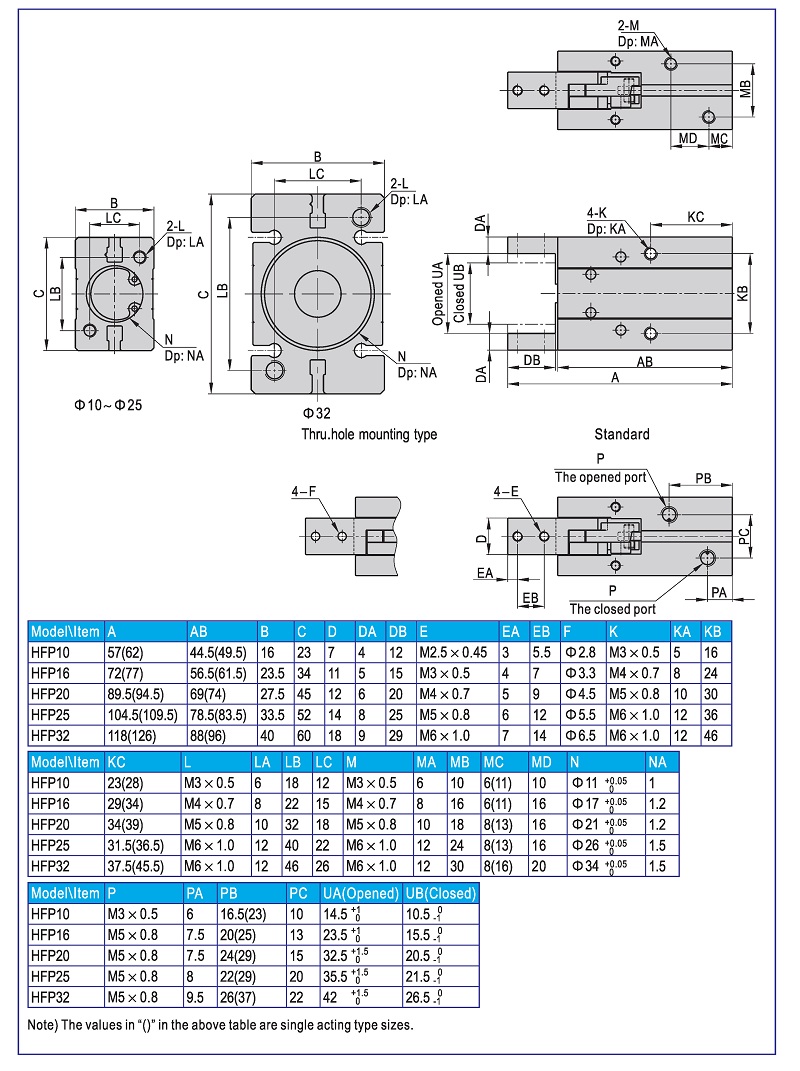

Pneumatic Parallel Gripper HFP Dimensions
Neu-Master Pneumatic warrants these compact pneumatic cylinders to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Pneumatic Parallel Gripper HFP Series , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
